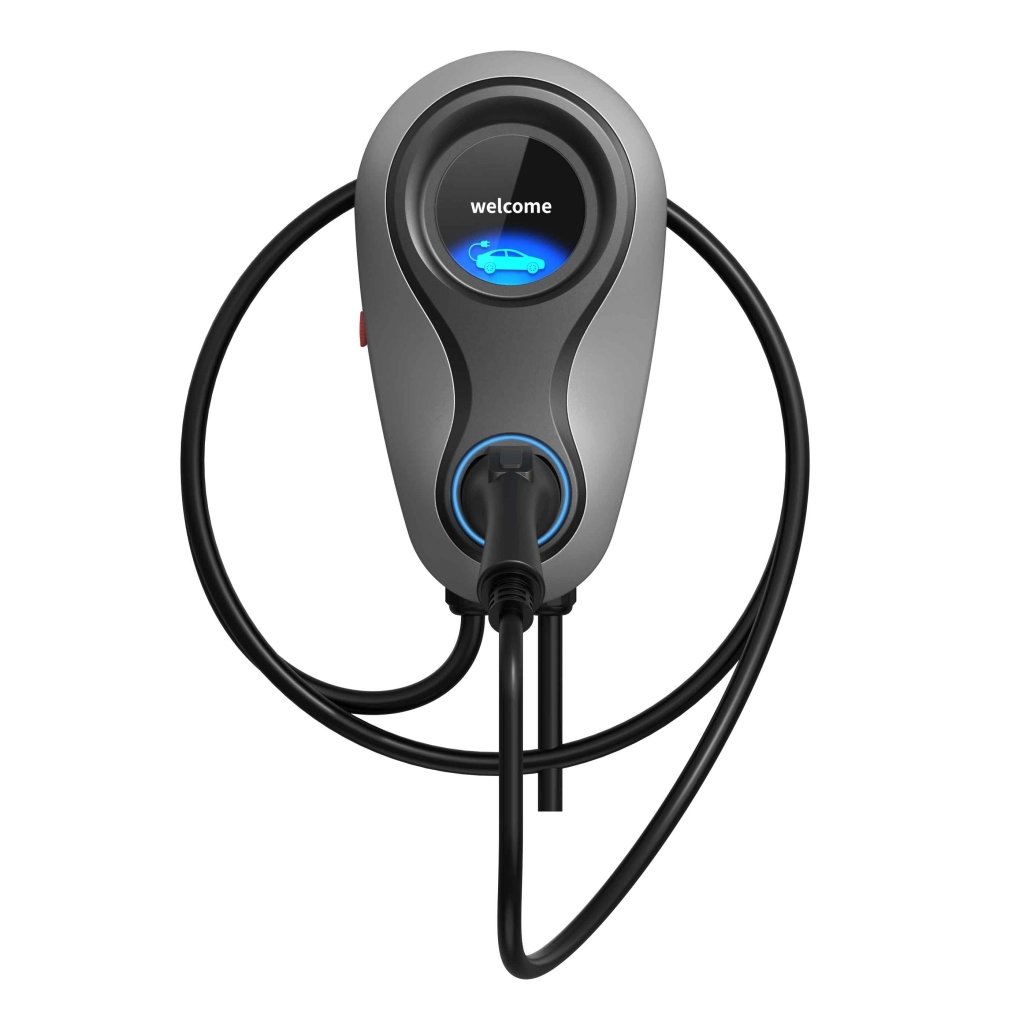

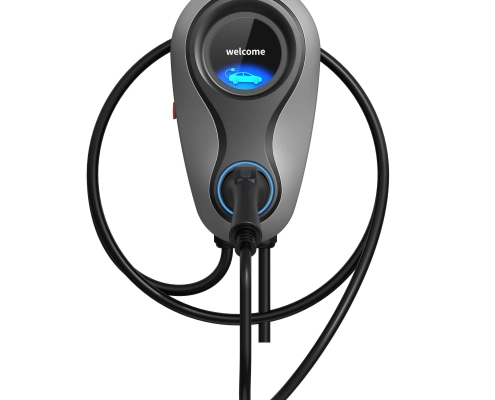

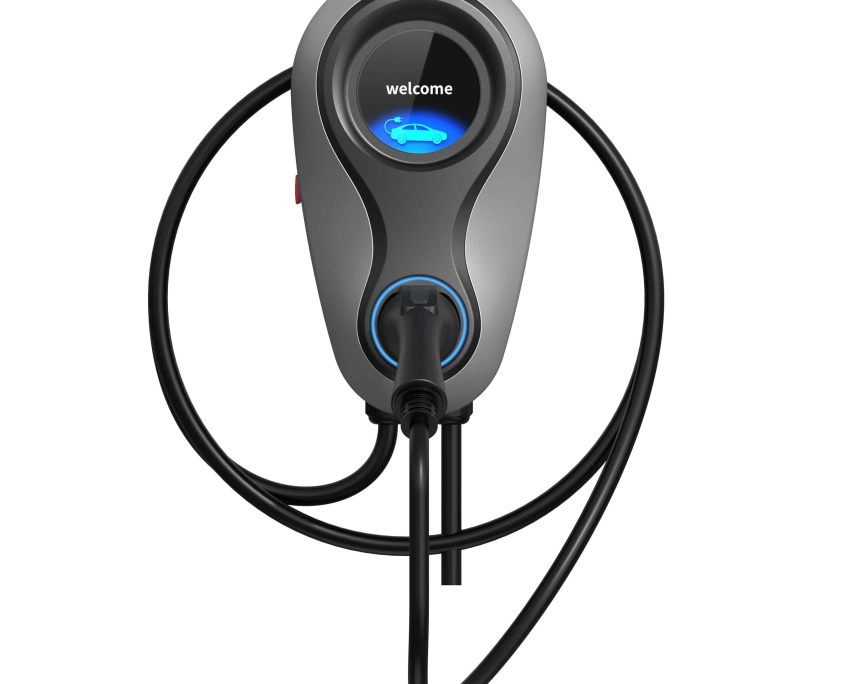

EV Car Charger

Main Features：

Dynamic Load Balancing
Real-time grid monitoring adjusts output (3.5/7/11/22kW) per socket to prevent tripping, supporting multi-charger deployments on single circuits.

GaN (Gallium Nitride) Power Modules
93% energy efficiency vs. 85% industry standard, reducing thermal stress and extending component lifespan by 40%.

Active Cooling System
Liquid-cooled cables + variable-speed fans maintain connectors at <50°C during 22kW fast charging (IP67-rated). White-Label Cloud Portal
Brandable web console for operators: CRM, live usage analytics, remote diagnostics, and automated invoicing.

TCO Reduction
GaN efficiency saves $1,200/year per charger at commercial sites (22kW @ $0.15/kWh).

Future-Proofing:
Field-upgradable to OCPP 2.0.1 via online data upgrade; Type-2 socket accepts CCS/CHAdeMO adapters.

Regulatory Shield
Meets EU Directive 2014/94/EV, UL 2594, and CE-LVD/EMC certifications globally.

EVSE AC Car Charger Core Technical Advantages

Quad-Network Redundancy

Ethernet (PoE+), dual-SIM 5G, Wi-Fi 6, Bluetooth 5.2 ensure 99.99% uptime for fleet operators.

Edge Computing Capability

On-device data processing (ARM Cortex-A72 chip) enables offline operation with encrypted local transaction logging.

OCPP 1.6J Extensions

Custom JSON payloads for integration with ERP systems (e.g., SAP), renewable energy credits, and demand-response programs.

Hardware Security Module (HSM)

EAL5+ certified cryptographic processor for PCI-PTS 3.x compliance, preventing firmware tampering.

Adaptive UI Engine

Touchscreen auto-adjusts brightness/contrast via ambient light sensor; voice guidance in 12 languages (Nuance® AI).

Predictive Maintenance Alerts

ML algorithms forecast component failures (e.g., contactor wear) 30 days in advance via vibration/thermal sensors.

Zero-Trust Authentication

Multi-factor access: RFID + SMS OTP + geofencing (BLE proximity detection).

Cybersecurity Suite

Embedded intrusion detection system (IDS) with automatic VPN tunnel failover during DDoS attacks.

	Elf 22	Elf 11	Elf 07	Elf 35
Input Cable Structure	5x6mm²&1m	5x2.5mm²&1m	3x6mm²&1m	3x2.5mm²&1m
Weight	4.3kg	3.8kg	4.0kg	3.5kg
Input Voltage	400V±15%	400V±15%	230V±15%	230V±15%
Output Voltage	400V±15%	400V±15%	230V±15%	230V±15%
Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Rated Output Current	32A	16A	32A	16A
Rated Output Power	22KW	11KW	7KW	3.5KW
Insulation Resistance	DC 500V≥10MΩ
Dielectric Strength	DC 2800V≤10mA
Overcurrent Protection	35.2A	18A	35.2A	18A
Grounding Protection	√
Adhesion Protection	√
Operating Temperature	-25℃~+50℃
Storage Temperature	-40℃~+70℃
Ambient Humidity	≤95% non-condensing
Protection Class	IP55
Display Method	2.5’’ LCD & LED Indicator Light
Start-Stop Charging	Instant Charging & Swipe Card Charging & App Charging
Charging Cable Length	5m

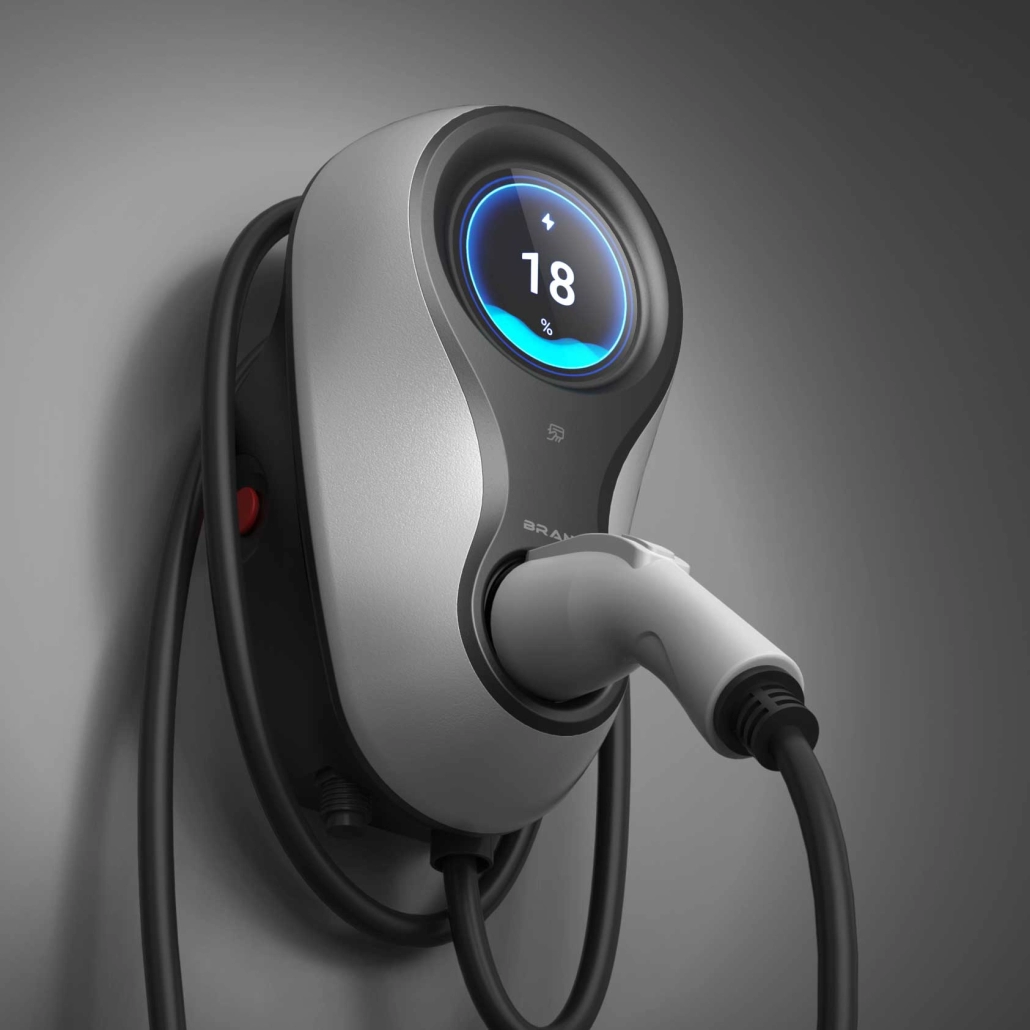

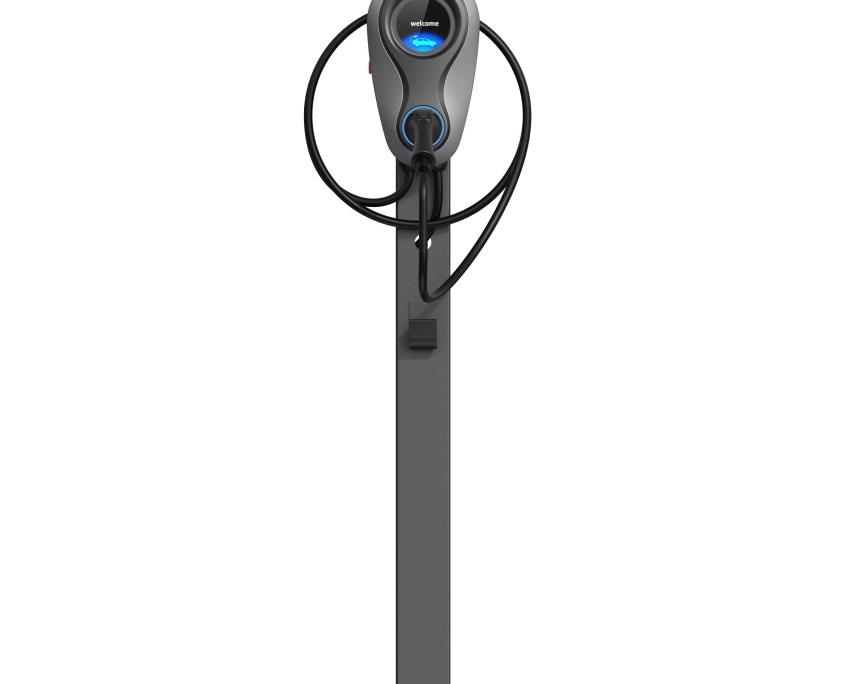

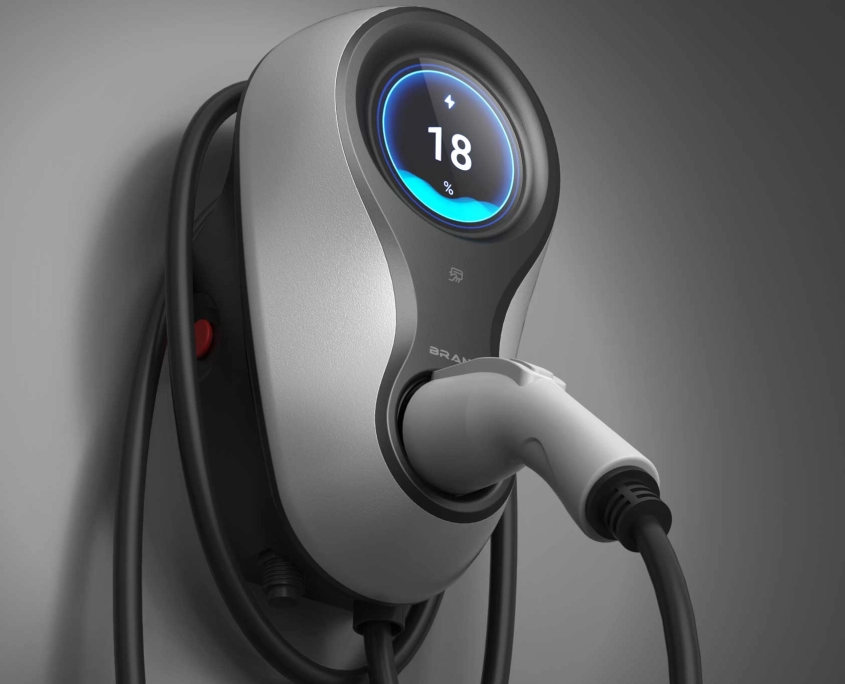

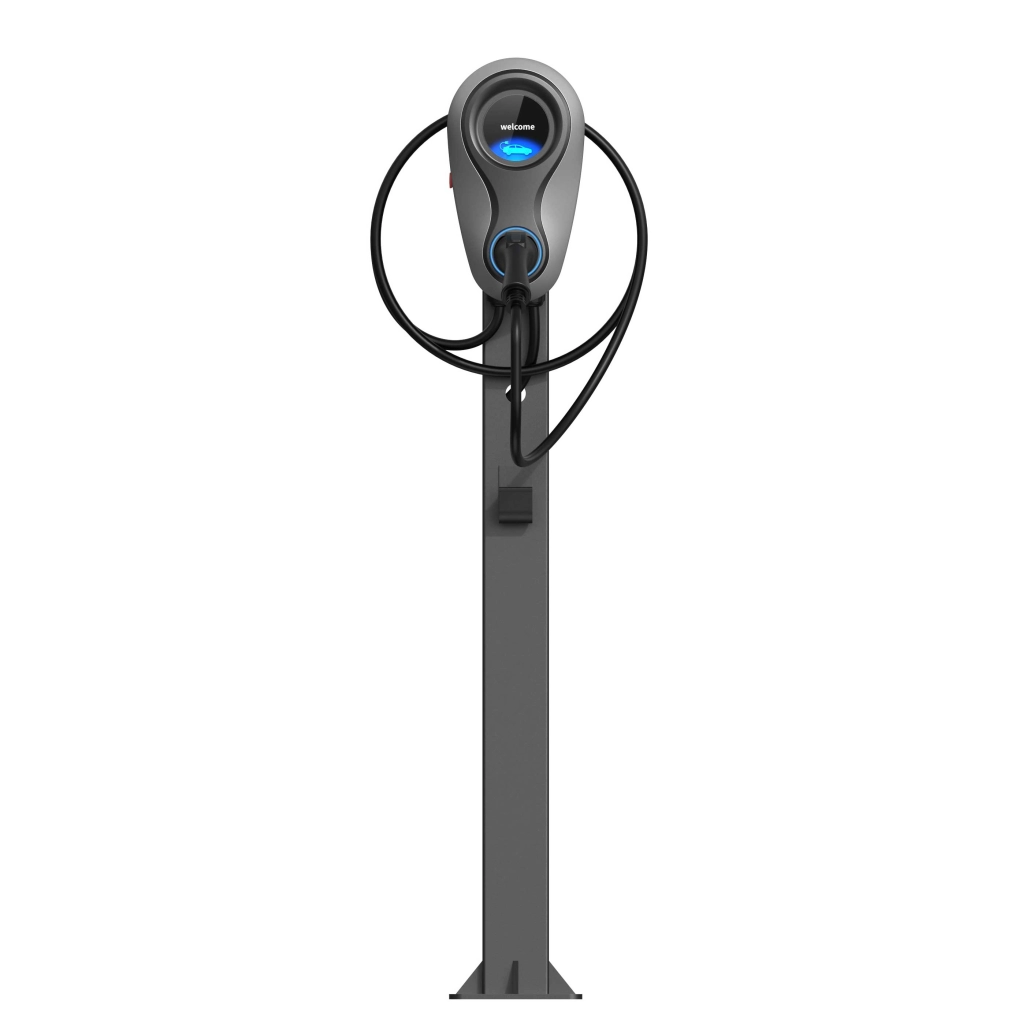

Installation Mode	Wall-Mounted or Column
Product Size	206X368X153(WXHXD)
Load Balancing(optional)	Support Home DLB Function

Why Choose Our Car Charger?

Hyper-Fast Installation

Laser-aligned magnetic mounts + pre-terminated cables enable 45-minute deployments (vs. industry 2.5-hour avg).

Circular Economy Design

92% recyclable chassis; swappable power modules extend hardware lifecycle to 15+ years.

Carbon Intelligence Dashboard

Real-time CO₂ savings tracking linked to local grid mix data; generates auditable ESG reports (GRI Standard compliant).

Request a Consulation
