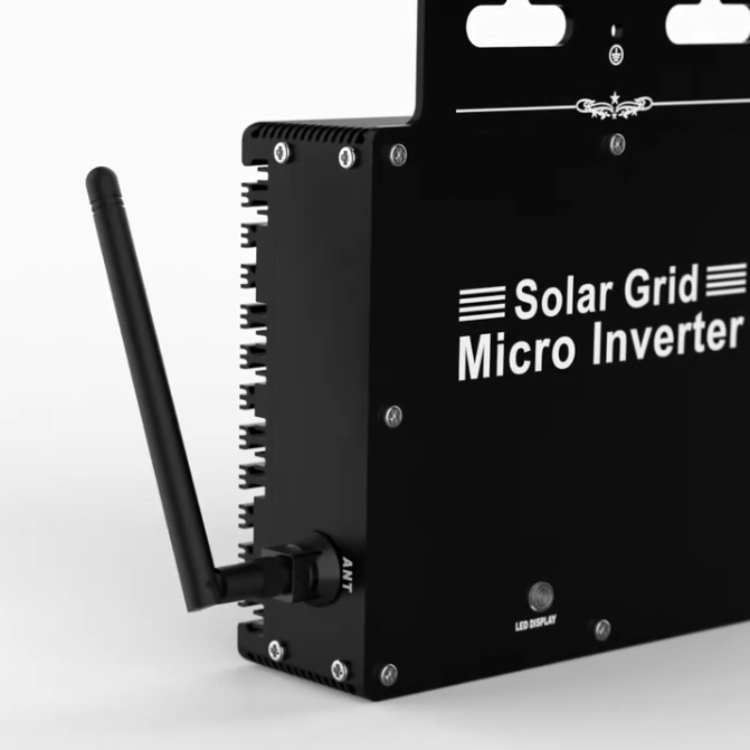

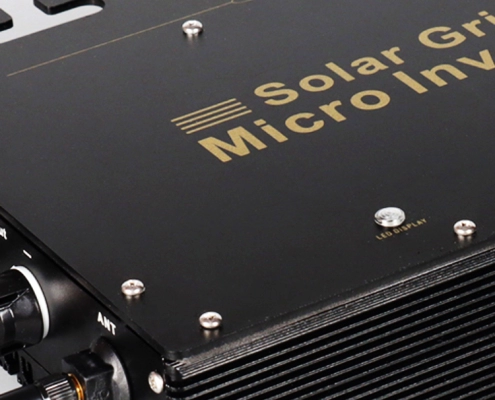

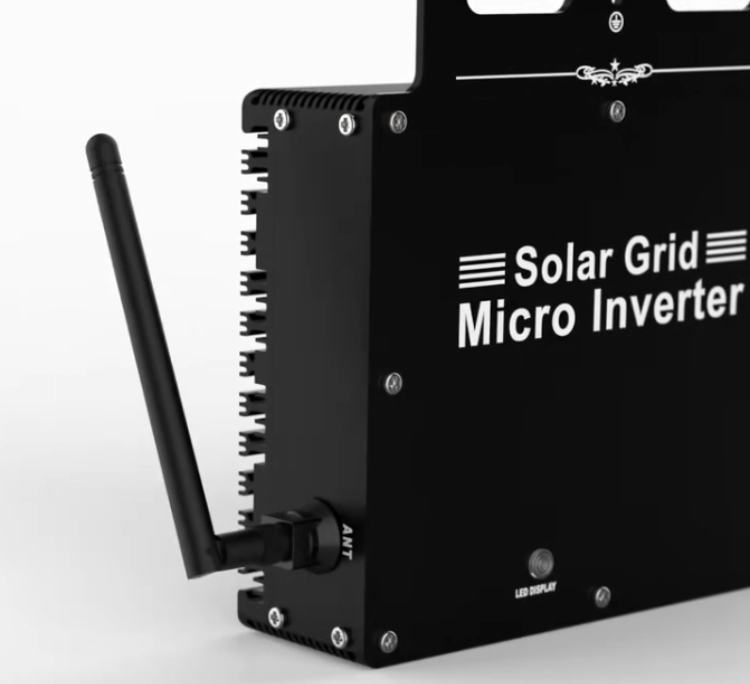

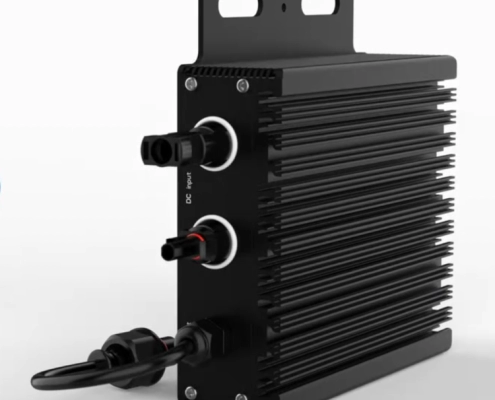

micro inverter (1)

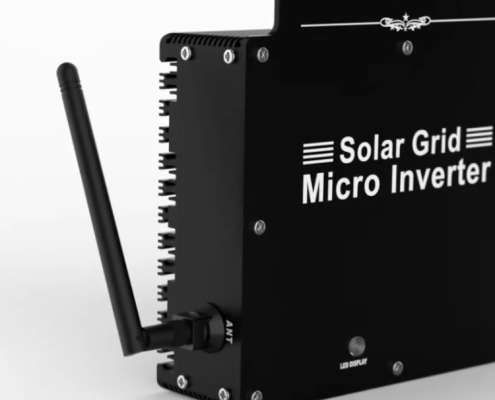

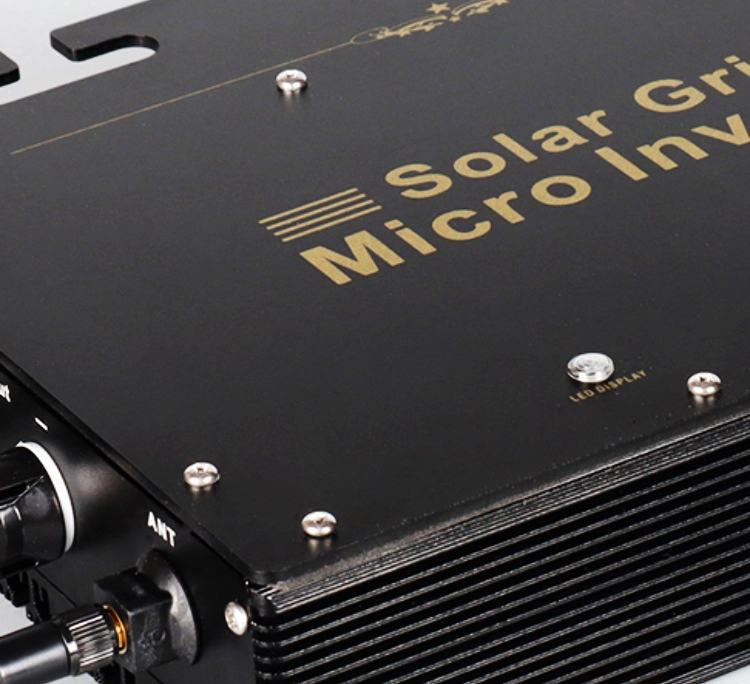

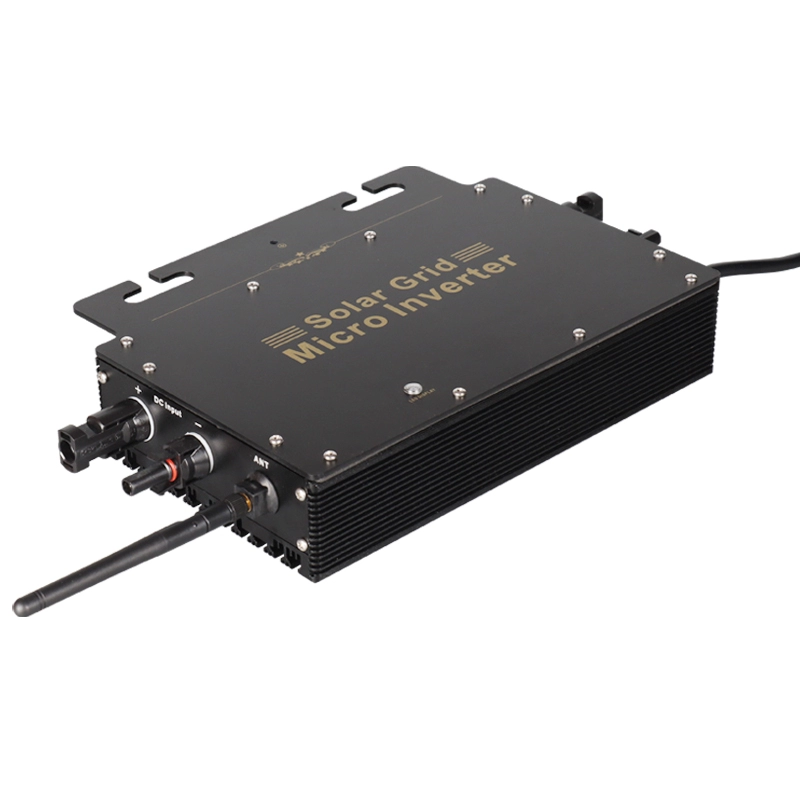

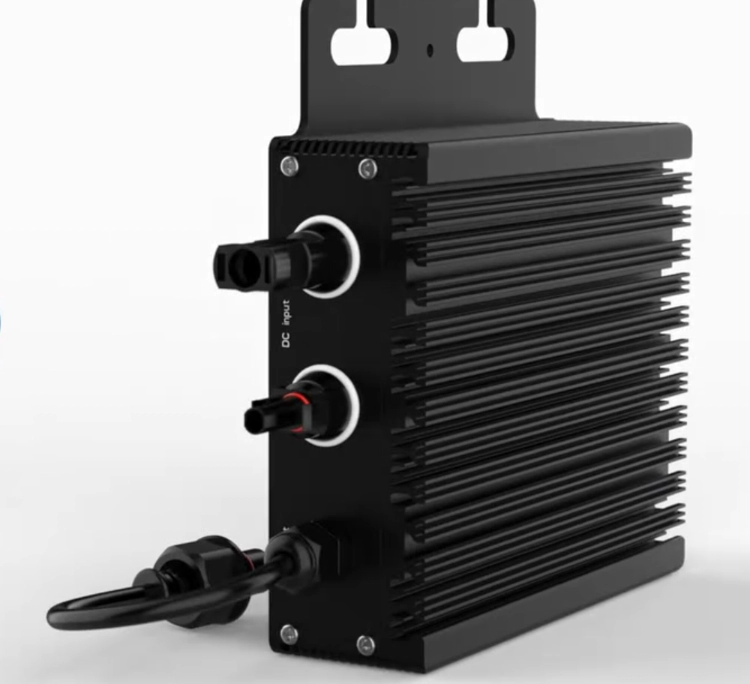

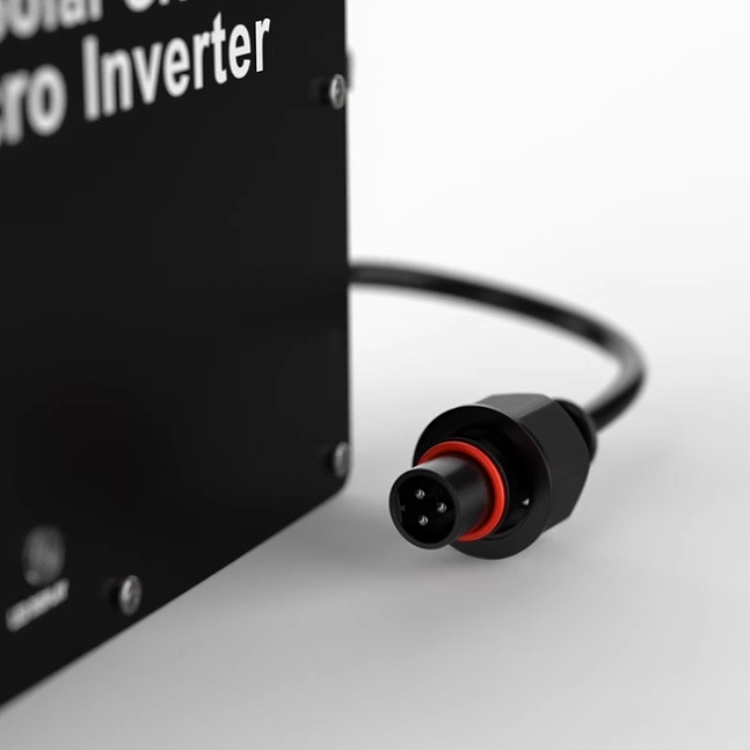

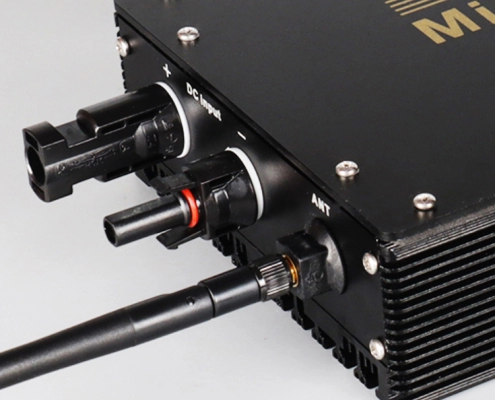

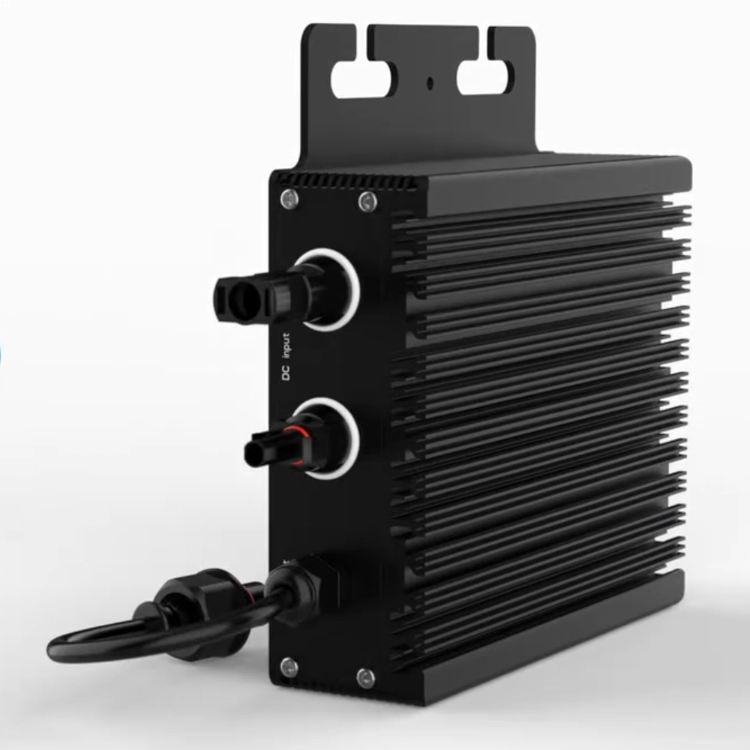

On Grid Micro Inverter

Main Features：
Power conversion rate up to 99%
IP65 waterproof
Can connect to large-scale solar systems
Low installation cost and long service life

Product Parameters

Model	MI-600	MI-700	MI-800
Dc input
Power ( W )	Max 625W	Max 750W	Max 875W
Peak power MPPT voltage range	30-55V
Open-voltage ( V )	18V
Working voltagerange ( V )	18-55V
Max input voltage ( V )	55V
Max input current ( A )	21A	24A	30A
Max input short-load current ( A )	30A
Maximum feedback current of the array ( A )	0
AC output
Rated output power ( W )	600W	700W	800W
Rated output current ( A )	5.0A/2.6A	5.8A/3.0A	6.6A/3.4A
Nominal output voltage range ( V )	@120VAC/@230VAC Auto
Nominal frequency/range (Hz)	@50Hz:47-53Hz/@60Hz:57-63Hz
Power factor	>0.95
Output current harmonic distortion	THD<3%
Maximum units per branch	6 PCS
Efficiency, Safety, and Protection
Peak Micro Inverter Efficiency	93%
CEC weighted efficiency	92%
Nominal MPPT efficiency	0.99
Night power consumption (mW)	<0.5W
Mechanical data
Ambient temperature range(℃)	-20°C~65°C
Storage temperature range (℃)	-40°C~75°C
Waterproof	Outdoor Nema 3r(lP65)
Heat dissipation method	Natural Convection(no Fans)
Pollution level	Pd3
Dimensions (L xWx H)( mm)	186x110x45mm
N.Weight ( kg)	IP65: 1.75KG IP67: 2.28KG
G.Weight ( kg)	IP65: 2.22KG IP67: 2.75KG
Pack dimensions	54.5x38x24cm(6PCS)

Know Our Core Technical Advantages for Solar Micro Inverter

Military-Grade Resilience

-20°C to 65°C operation (survives arctic storms/desert heat)
IP65/IP67 waterproof (zero performance loss in extreme conditions)

Unrivaled Solar Harvesting

99% MPPT efficiency (industry’s highest energy capture rate)
93% peak / 92% CEC efficiency (minimizes wasted sunlight)

Scalable Silent Power

800W output at 2.28kg (ultra-high power density)
6-unit parallel support (modular expansion without noise/fans).

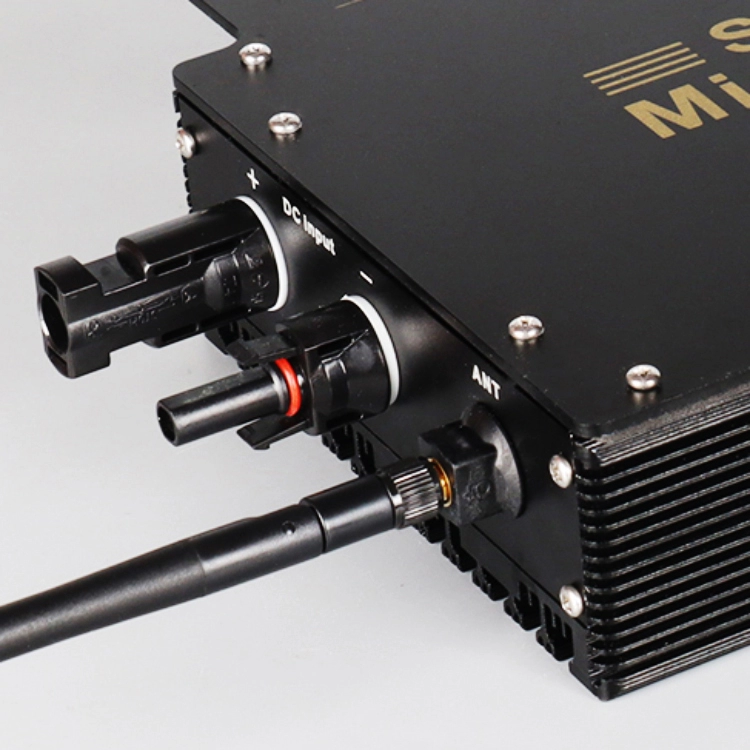

MI Micro Inverter (3)

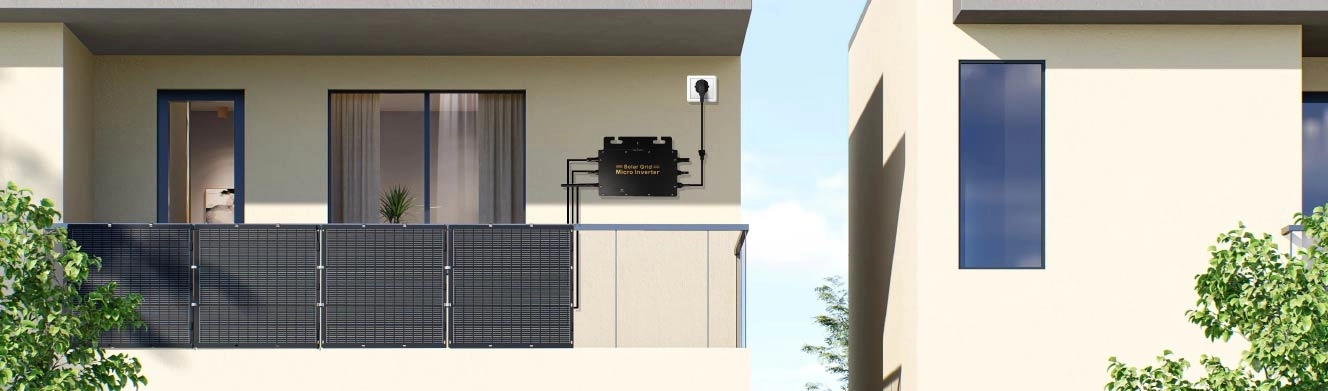

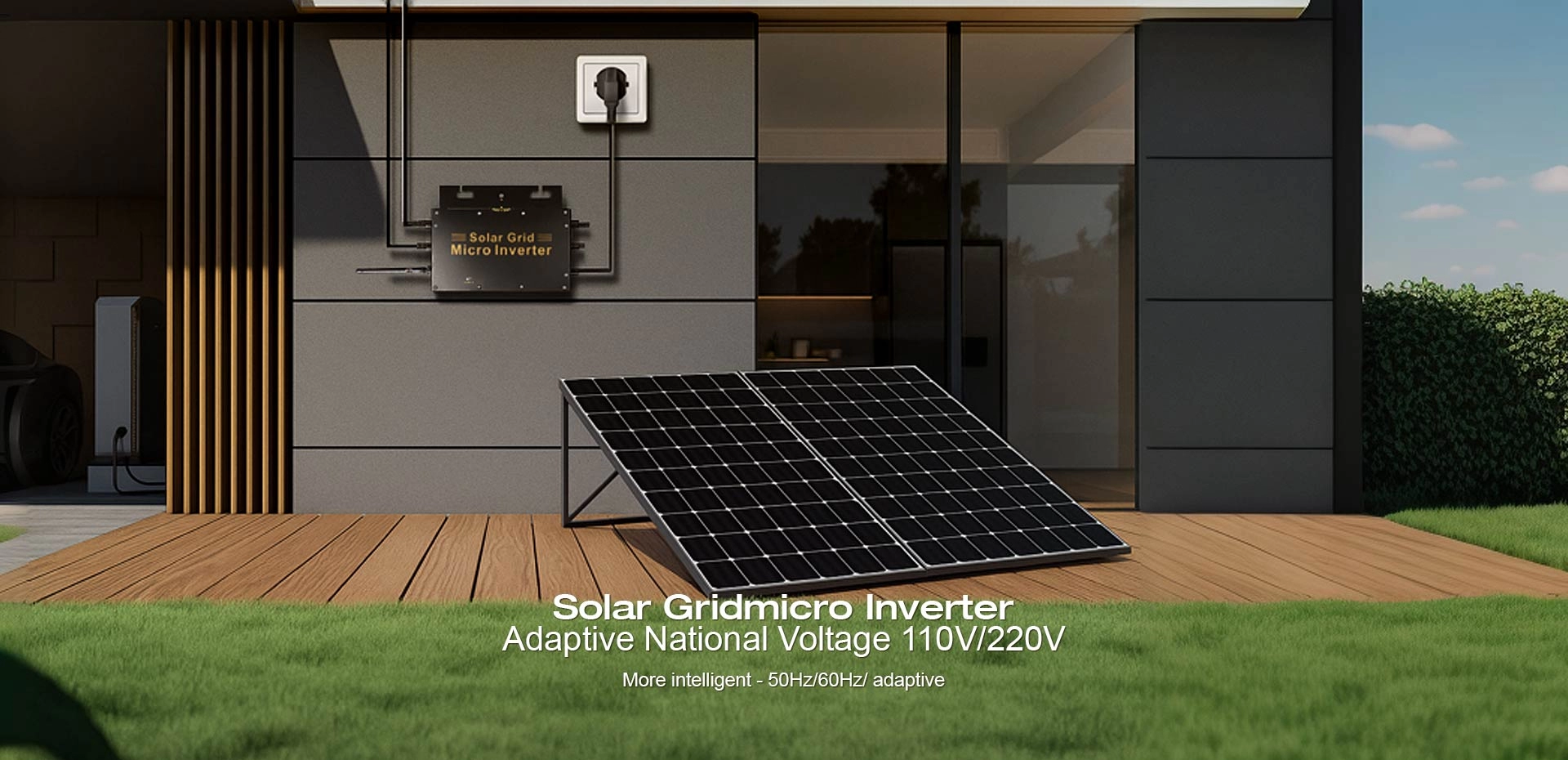

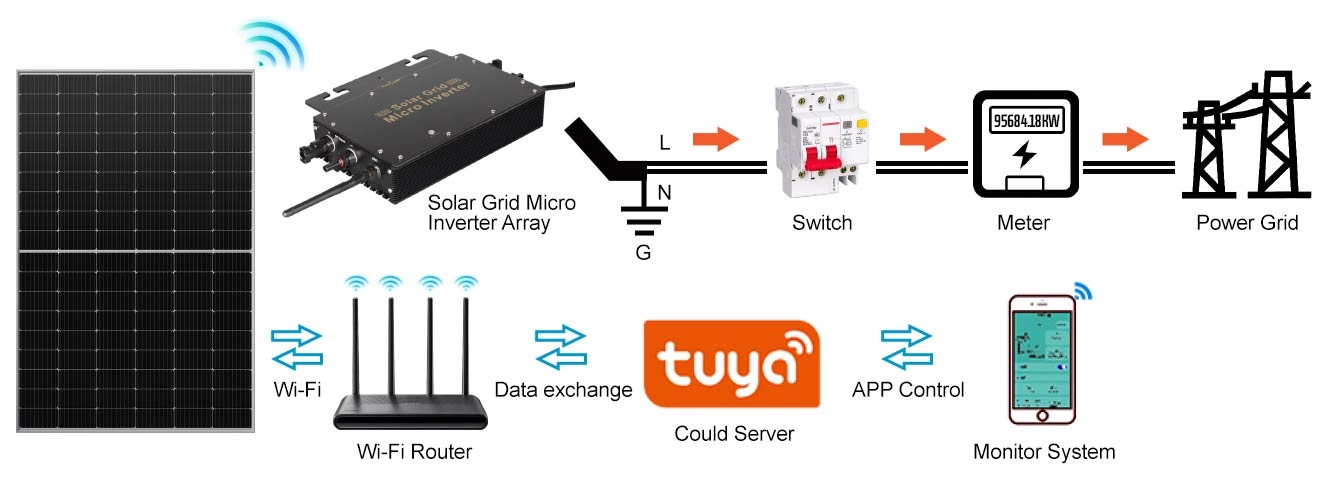

Improving Solar Energy Collection with Micro inverters

A on grid micro inverter can be used as the central monitoring and output system. High-efficiency solar panels can be used to power a solar micro inverter array, which converts DC power into AC power synchronized with the grid and transmits it to the power company via a safety switch and energy meter. This modular micro solar inverter is ideal for residential and commercial installations, simplifying installation, improving energy collection efficiency, and supporting intelligent output management for net metering. Furthermore, Wi-Fi connectivity between home routers and cloud platforms can be utilized to enable real-time data exchange, remote app control, and system monitoring.

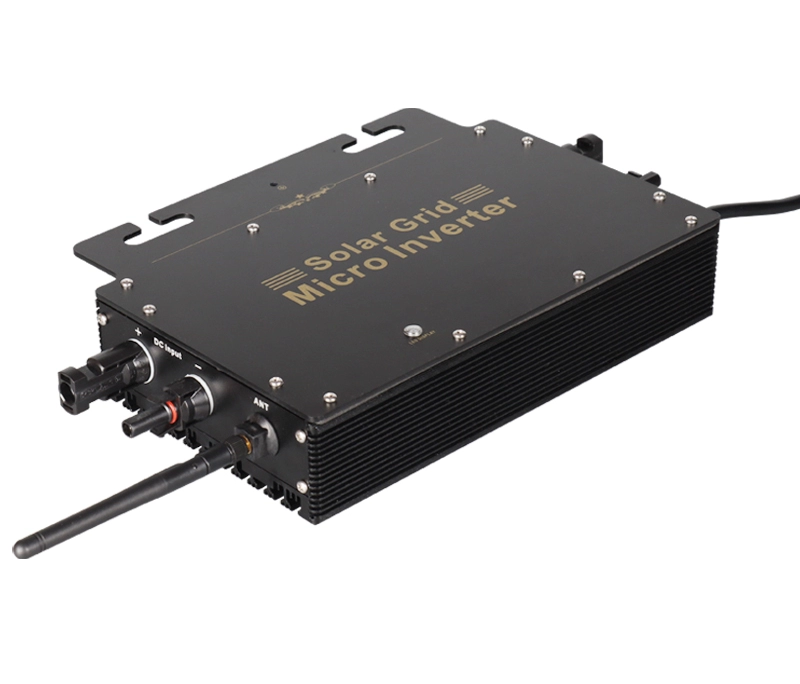

micro inverter (2)

Why Choose Our Micro Inverter?

Industry-Leading Efficiency
93% peak efficiency | 92% CEC weighted efficiency
99% MPPT tracking accuracy (maximizes solar harvest)

Extreme Environment Resilience
Operates at -20°C to 65°C | Survives storage at -40°C to 75°C
IP65/IP67 waterproof (storms/dust-proof)

Silent & Maintenance-Free
Zero noise fanless cooling
Night consumption <0.5W (ultra-low vampire drain)

Scalable High-Density Power
800W output at only 2.28kg (MI-800 flagship)
6-unit parallel support (build modular arrays)

Grid Intelligence
Reverse power transfer + load priority management
Compliant with EN 50549-1/2 (2019), IEC/EN 62109

Global voltage/ frequency adaptive
Multiple units are stacked in parallel
No installation and maintenance required
Able to handle all weather conditions
Smart phone APP monitoring system
MPPT power conversion rate up to 99%
IP65 waterproof rating
Military-Grade Resilience
Unrivaled Solar Harvesting
Scalable Silent Power

Request a Consulation

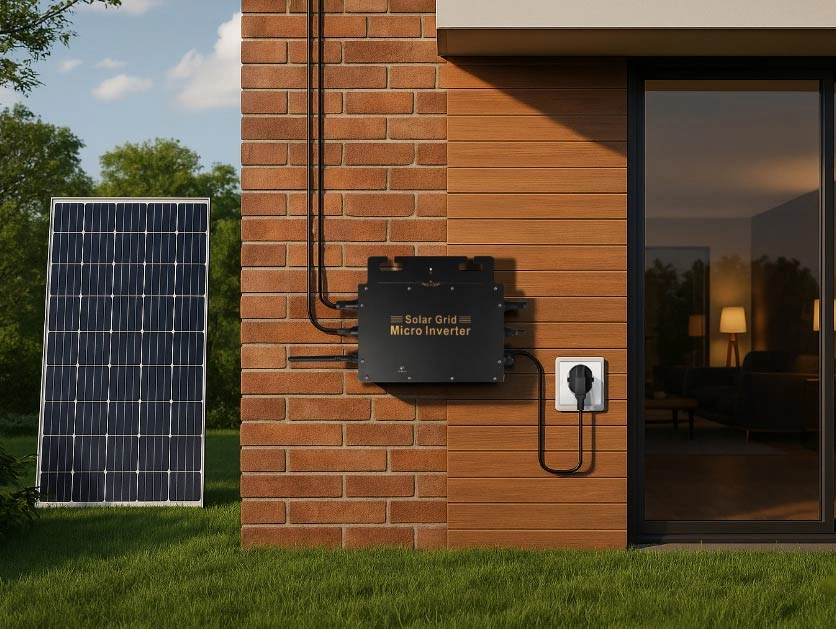

MI Micro Inverter (4)
