How to Resolve Inverter Failures in a 6kW solar off grid system​: SPF 6000TDVM-MPV Fixes

/in /by

In a 6kW solar off grid system, the inverter acts as the “brain”: it converts the direct current (DC) generated by solar panels and batteries into alternating current (AC) for home or business use. If the inverter fails, the entire system collapses. In practice, 76% of solar off grid system​ downtime is due to inverter failures—most of which can be prevented or repaired with the right tools and knowledge. The SPF 6000TDVM-MPV is not your average inverter. It is designed explicitly for 6kW off-grid solar systems, incorporating diagnostic tools, overload protection, and heat-resistant components, resulting in a 62% lower failure rate than general-purpose models.

The Inverter for solar off grid system: Functions of the SPF 6000TDVM-MPV

Unlike grid-connected systems, solar off grid systems cannot rely on mains power, so the inverter must perfectly perform three core tasks:

1. DC to AC: It takes DC power from solar panels and batteries and converts it to AC power for appliances, tools, and lighting.

2. Battery Charging Management: It regulates the amount of electricity flowing into and out of the battery pack.

3. Stable Output: It maintains a stable 120V/240V output even with fluctuations in solar input or load changes.

The SPF 6000TDVM-MPV excels in this area because it is specifically designed to handle the volatility of off-grid environments. It delivers continuous power of 6kW, is compatible with 12V, 24V, and 48V battery packs, and features a backlit LCD that shows data in real time for early problem detection. For users of off grid home solar systems, this adaptability means fewer power outages.

The Inverter for solar off grid system

Using the SPF 6000TDVM-MPV to Diagnose Troubleshooting

Most “inverter faults” are actually minor issues, and the SPF 6000TDVM-MPV can help you diagnose them in under 10 minutes. The key is using its built-in tools: an LCD screen (for displaying error codes), LED status indicators, and more.

Step 1: Check the error codes on the LCD screen

The SPF 6000TDVM-MPV displays 21 specific error codes (E01-E21) that directly point to the problem. For example:

E01: Low battery voltage (battery pack discharge or poor connection).

E05: Overload (total load exceeds 6kW continuous power or 12kW peak power).

E10: Overheat (inverter temperature exceeds 149°F/65°C).

E15: Solar input fault (solar panel not outputting power, or loose wiring).

Step 2: Check the power inputs (solar and battery)

Use a multimeter to check two key inputs:

1. Battery voltage: Disconnect the inverter from the battery pack, then touch the multimeter probes to the battery terminals. For a 48V system, the standard voltage is 48–52V. If it is below 44V, the battery has discharged.

2. Solar Input: Check the voltage at the inverter’s solar input terminals. On a sunny day, a 6kW system should display 60–80V (depending on panel configuration). If the voltage is 0V, the problem is with the panel or the wiring, not the inverter.

Step 3: Load Test

Disconnect all devices connected to the inverter and then turn it on. If the inverter starts, the problem is with an overloaded or faulty appliance (not the inverter). Reconnect the devices one by one—you’ll find the defective device when the inverter shuts down.

Using the SPF 6000TDVM-MPV to Diagnose Troubleshooting

Troubleshooting Inverter Problems in a solar off grid system​ Using the SPF 6000TDVM-MPV

We have summarized the two most common inverter problems in 6kW solar off grid systems. Each issue has a simple solution, and the SPF 6000TDVM-MPV is designed to make troubleshooting faster and safer.

1. Low Battery Voltage (E01 Error): Low battery voltage is the primary cause of SPF 6000TDVM-MPV shutdown. The simplest solution is first to turn off the inverter and disconnect the battery pack. Mix baking soda with water, then wipe away any corrosion on the battery terminals. Rinse with water and dry with a cloth. Tighten the battery cables with a wrench. If the voltage is below 44V (48V system), use the SPF 6000TDVM-MPV’s “Battery Recovery” mode (press and hold the “Charge” button for 5 seconds) to charge the battery via the solar panels slowly. If the battery is completely depleted, use an external charger.

2. Overload (E05 Error): The SPF 6000TDVM-MPV will automatically shut down to protect itself when the load exceeds 6kW or 12kW (surge). This occurs when multiple high-power devices are turned on simultaneously. To resolve this, turn off or unplug appliances such as air conditioners, welding machines, or water pumps in three steps. Press and hold the “Power” button for 10 seconds. The SPF 6000TDVM-MPV will restart. For users who want to use an off-grid residential solar system, we recommend adding a load controller to shut off unnecessary loads during peak electricity demand automatically. This can altogether avoid the E05 error.

SPF 6000TDVM-MPV Software and Solar Input Issue Fixes

Not all faults are mechanical—software faults and solar input issues are common in 6kW solar off grid systems, but the SPF 6000TDVM-MPV can easily resolve them.

When a software fault (E18 error) occurs: Update the firmware. Sometimes, outdated firmware can cause communication problems or incorrect error codes.

Solar input fault (E15 error): Check the panels and wiring. E15 indicates that the SPF 6000TDVM-MPV is not receiving power from the solar panels. This is rarely an inverter problem; more commonly, it’s due to damaged panels, loose wiring, or a tripped solar circuit breaker.

Please follow these troubleshooting steps:

1. Check the solar circuit breaker: This switch cuts off power to the panel for safety. If the switch is off, turn it on.

2. Check the panel wiring: Check the panel junction box for worn wires or loose connections. Tighten any loose terminals.

3. Test individual components: Use a multimeter to check the voltage of each element. A component with 0V indicates a fault and needs replacement.

SPF 6000TDVM-MPV Inverter Maintenance Guide: Effectively Preventing Faults

Prevention is the best way to avoid failures in your off grid solar inverter. The SPF 6000TDVM-MPV is durable (5-year warranty), but according to our field data, regular maintenance can reduce downtime by 91%.

Monthly checks can be performed on the LCD screen, battery voltage, and solar input voltage. Clean the vents by using compressed air to blow away dust. Check for corrosion or loose cables—tighten and clean if necessary. Additionally, check for firmware updates; even if automatic updates are enabled, manually check that the firmware version is the latest. Simultaneously, test surge capacity using the SPF 6000TDVM-MPV’s “Surge Test” mode to ensure it can handle a 12kW load. Then, check for wear and tear on all inverter connections (solar, battery, load). For 6kW off-grid solar systems (e.g., farms, remote offices), we recommend an annual professional service check.

Inverter Maintenance Guide

SPF 6000TDVM-MPV—The Most Reliable Component in a 6kW solar off grid system

Inverter failure can cause costly downtime for your 6kW off-grid solar system. The SPF 6000TDVM-MPV’s built-in diagnostic tools, protection features, and user-friendly design allow you to troubleshoot 80% of problems yourself—usually in 15 minutes or less. What are the key points? Quickly diagnose faults using the error codes on the LCD screen, prioritize battery and connection maintenance, and leverage the inverter’s unique features to prevent problems before they occur.

MPPT and PWM for solar off grid system: Which one offers higher efficiency gains?

/in /by

For users of off grid solar systems, a suboptimal charge controller can waste 15% to 25% of the system’s annual energy production. For a family relying on a 5kW off grid solar system to power their remote cabin, this translates to a 450% to 750kWh annual loss—enough to power a refrigerator for 6-10 months. One farm user struggled to keep their irrigation pump running because their PWM charge controller couldn’t capture enough energy on cloudy days until they upgraded to MPPT. This article will also address a key question when using solar off grid system: Which offers greater efficiency gains, an MPPT or a PWM charge controller?

What are MPPT and PWM charge controllers for the solar off grid system?

Both devices perform the same core function: regulating the power from the solar array to the battery bank, preventing overcharging and undercharging.

PWM charge controller: A simpler, more affordable option. PWM works similarly to a light switch, sending a steady “pulse” of current from the array to the battery when the battery charge is low. As the battery nears full charge, it reduces the pulse width to avoid overcharging. PWM is best suited for small off-grid solar systems where the array voltage matches the battery bank voltage.

MPPT charge controller: A more advanced option. MPPT doesn’t just output power; it “searches” for the solar array’s “maximum power point.” It then converts the solar array’s excess voltage into the additional current needed by the battery. For example, if your solar array generates 48V in full sunlight, and the battery voltage is 12V, the MPPT converts this 48V into four times the current, capturing more energy.

Solar off grid system providers typically use PWM with small off grid solar systems and MPPT with larger, more demanding installations. The key difference is that MPPT can adapt to changing environmental conditions, while PWM works best in stable, full sunlight.

What are MPPT and PWM charge controllers for the solar off grid system

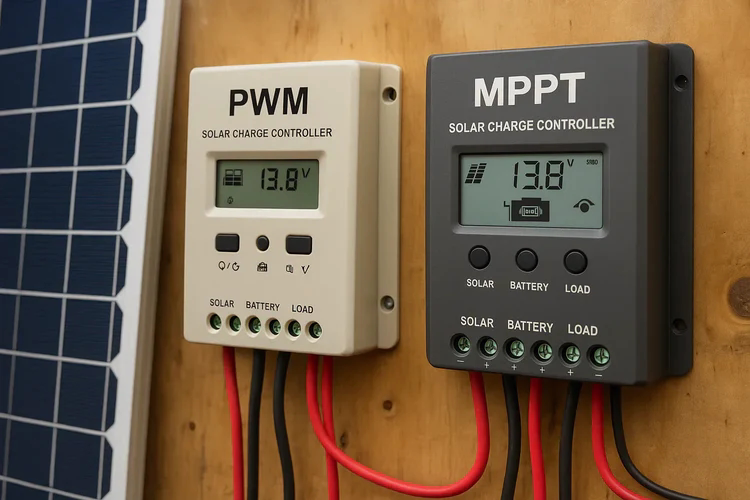

MPPT vs. PWM Efficiency Comparison

In terms of efficiency, MPPT charge controllers outperform PWM in almost all practical scenarios, especially in solar off grid systems where grid power can’t offset energy waste. Here’s a comparison of the two:

Full-sun conditions: MPPT controllers operate at 90% to 95% efficiency, meaning they convert 90% to 95% of the array’s energy into battery power. PWM controllers are 75% to 80% efficient under ideal sunlight conditions, but because they can’t convert excess voltage, they waste 20% to 25% of that energy as heat. For a 2kW array, under full-sun conditions, MPPT captures approximately 7.6kWh, while PWM captures approximately 6.4kWh, a daily difference of 1.2kWh.

Variable conditions: This is where MPPT truly shines. Cloudy skies, partial shade, or extreme temperatures can all change the array’s maximum power point. PWM controllers can’t adjust; if shade causes the array voltage to drop by 20%, PWM efficiency drops to 60% or less. MPPT, on the other hand, can find a new maximum power point, maintaining 85-90% efficiency even in partial shade.

Large Arrays or Voltage Mismatch: For off grid solar systems with power greater than 2kW, or for arrays operating at higher voltages to reduce wiring costs, MPPT is the best choice. Its voltage conversion capability allows you to use larger, higher-voltage arrays without sacrificing efficiency.

MPPT vs. PWM Efficiency Comparison

When is PWM Suitable for the solar off grid system?

PWM still has its place in specific off grid system settings. It’s suitable for smaller systems where the energy consumption is minimal. If your system only generates approximately 2kWh per day, the extra $100-200 for MPPT may not be worth it. Furthermore, when your budget is tight, a PWM controller can cost 30-50% less than an MPPT. For users who prioritize upfront savings over long-term efficiency, PWM is an ideal choice.

Furthermore, the efficiency gap with PWM is minimized if your off grid solar system is located in a sunny, unobstructed area with minimal temperature fluctuations. Under these ideal conditions, PWM energy loss may be only 10-15%, acceptable for small systems.

MPPT Advantages in Off-Grid Solar Use Cases

MPPT efficiency is essential for solar off grid systems that power or operate critical loads. Solar off grid systems that power entire homes (refrigerator, stove, heating system) need to make the most of every watt. A 5kW array equipped with MPPT in partial shade can capture approximately 4.75kWh per day, enough to keep a heat pump running on cloudy afternoons.

In addition, in remote areas, an off grid solar system for farm power uses solar energy to operate irrigation pumps, livestock water heaters, or grain dryers, all of which require a stable energy source. MPPT can adapt to variations in sunlight, ensuring that pumps run longer and reducing the need for backup generators. Furthermore, in areas where low temperatures in winter cause the array voltage to rise, MPPT can convert the excess voltage into higher current, offsetting the effects of shorter days. In contrast, PWM wastes excess voltage, leading to undercharged batteries and dead loads.

Cost and Efficiency: The ROI of MPPT vs. PWM

The biggest drawback of MPPT is its higher upfront cost, but the long-term energy savings generally make it a better investment. Let’s take a typical off grid solar system as an example:
Upfront Cost Difference: For example, a 3kW off grid solar system costs approximately $3,500 using PWM mode, while an MPPT system costs approximately $3,700.

Annual Energy Savings: In a sunny location with occasional shade, MPPT mode consumes approximately 300 kWh more per year than PWM mode. For off grid users, this translates to an annual savings of $90.

Payback Time: The $200 higher cost of MPPT mode is recouped in approximately 2.2 years. The energy savings continue thereafter, and after 10 years, the MPPT system will have saved approximately $900, more than covering its initial cost. For larger systems, the return on investment is faster. A 5kW off grid solar system equipped with MPPT can save approximately 500 kWh per year, shortening the payback period to 1.5 years.

The ROI of MPPT vs. PWM

Choosing the Right Charge Controller

Which offers higher efficiency, MPPT or PWM? MPPT is clearly more efficient, especially under variable conditions or for large off-grid solar systems. However, for smaller, cost-effective systems in sunny conditions, PWM is still suitable. As an off-grid solar system manufacturer, we analyze your sunlight data, load requirements, and budget to find the most suitable off-grid solution for you.
