EVSE AC Car Charger
Main Features：
Versatile Charging Performance
Wide Power Range: Supports 3.5kW, 7kW, 11kW, and 22kW charging capacities, catering to residential, commercial, and public EV charging needs.
Multi-Mode Support: Flexible operation for diverse charging modes, payment methods, and management protocols.
Smart Technology & Connectivity
Dual Connectivity: Ethernet + wireless telecommunication for robust data transfer and remote management.
OCPP 1.6J Compliance: Industry-standard protocol support (optional) for network interoperability.
RFID Authentication: Secure access via RFID cards + RFID blocking card for anti-theft protection.
EVSE AC Car Charger Core Technical Advantages
User-Centric Design
Intuitive Touchscreen: 4.3-inch/7-inch color display for real-time monitoring (e.g., voltage, current, temperature) and user-friendly interaction.
Remote Control: Manage sessions, schedules, and costs via app/web interface.
Safety & Reliability
Overload Protection: Integrated electrical safety mechanisms.
Industrial-Grade Hardware: Includes corrosion-resistant screws (M4/M6), plastic expansion bolts (M10+M6), and durable wall-mount brackets.
2-Year Warranty: Commitment to product longevity.
Seamless Installation & Support
Plug-and-Play Components: Pre-packaged with connector holders, screws, brackets, and clear user manuals.
24/7 Online Support: Round-the-clock technical assistance.
Customization & Future-Proofing
Optional Type-2 Connector/Socket: Adapts to regional standards.
Online Data Upgrades: Firmware updates for evolving requirements.
Military-Grade Authentication
AES-256 encrypted RFID cards + optional biometric/facial recognition via firmware update.
Real-Time Threat Detection
Monitors for power anomalies (voltage spikes/ground faults) and disconnects within 0.1s.
Enterprise-Grade Connectivity
Dual-Channel Uplink: Ethernet + wireless (4G/Wi-Fi) for failover reliability.
Remote Firmware Upgrades: Over-the-air (OTA) updates for feature expansions without hardware swaps.
Advanced Security & Compliance
RFID + OCPP 1.6J: Combines physical access control (RFID cards) with backend payment/management protocol compliance for PCI-ready security.
Anti-Skimming Tech: RFID blocking card prevents data theft.
| Iron Man 22 | Iron Man 11 | Iron Man 07 | Iron Man 35 | |
|---|---|---|---|---|
| Input Cable Structure | 5x6mm²&1m | 5x2.5mm²&1m | 5x2.5mm²&1m | 3x2.5mm²&1m |
| Weight | 4.9kg | 4.4kg | 4.6kg | 4.1kg |
| Input Voltage | 400V±15% | 400V±15% | 230V±15% | 230V±15% |
| Output Voltage | 400V±15% | 400V±15% | 230V±15% | 230V±15% |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Rated Output Current | 32A | 16A | 32A | 16A |
| Rated Output Power | 22KW | 11KW | 7KW | 3.5KW |
| Insulation Resistance | DC 500V≥10MΩ | |||
| Dielectric Strength | DC 2800V≤10mA | |||
| Overcurrent Protection | 35.2A | 18A | 35.2A | 18A |
| Grounding Protection | √ | |||
| Adhesion Protection | √ | |||
| Operating Temperature | -25℃~+50℃ | |||
| Storage Temperature | -40℃~+70℃ | |||
| Ambient Humidity | ≤95% non-condensing | |||
| Protection Class | IP55 | |||
| Display Method | LED Indicator Light | |||
| Start-Stop Charging | Instant Charging & Swipe Card Charging & App Charging | |||
| Charging Cable Length | 5m | |||

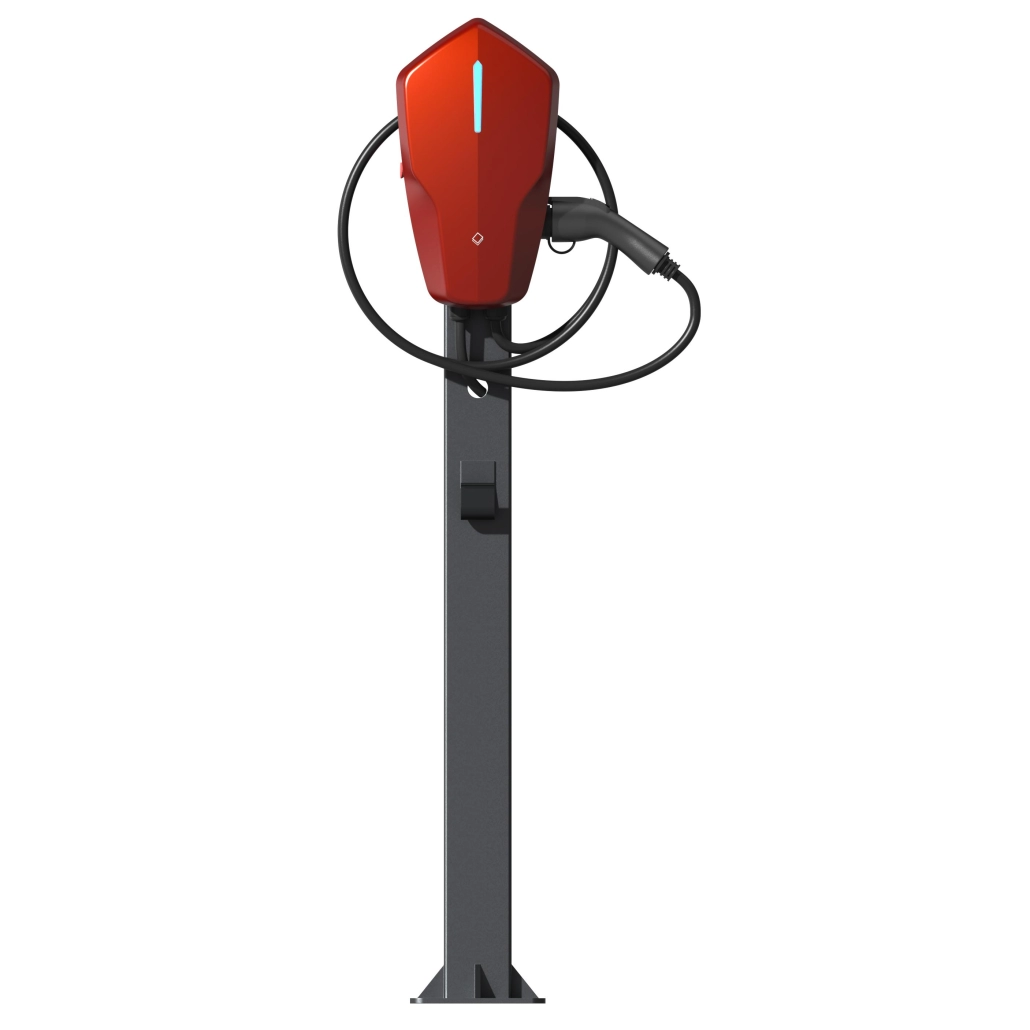

| Installation Mode | Wall-Mounted or Column | |||
| Product Size | 241X430X141(WXHXD) | |||
Why Choose Our Car Charger?
Dynamic Power Management
Auto-adjusts output (3.5–22kW) based on grid load/vehicle compatibility, preventing circuit overloads.
Dual-Stack Connectivity
Ethernet (PoE support) + 4G/Wi-Fi 6 for near-zero latency data sync in low-signal areas.
OCPP 1.6J Ecosystem Integration
Seamless API integration with third-party platforms (e.g., charge station operators, energy management systems).
Type-2 Hybrid Connector
IP67-rated sockets with temperature sensors to prevent melting during fast charging.
