Solar Panel Ground Mounting Systems

We manufacture durable, weather-resistant ground mounts for solar panels. Engineered for quick installation on any terrain, our systems ensure optimal panel positioning to maximize energy capture and project ROI. Ideal for utility, commercial, and large-scale residential solar farms.

Advantages of Solar Panel Ground Mounting Systems with 25-year warranty

We use high-quality materials

Cold-rolled steel sections made of S235JR / S355JR steel coils as per EN 10025 with a hot-dip galvanized anti-corrosion coating in accordance with ISO1461:2009 are used in the structures. S350GD galvanized coiled steel as per EN 10326, as well as its equivalents (Aluzinc, Magnelis, Corrender, Posmac) are allowed to be used, with an anti-corrosion coating of at least 275 g/m², depending on the requirements of each specific project. Optionally, structures made of high-quality aluminum alloy with anodized coating can be used.

Stainless steel A2-70 metalware as per ISO 3506-1:2009 or carbon steel metalware as per ISO 898-1:2013 with other types of coatings (galvanized, Dacromet, Delta, HDG) is used for mounting, depending on customer’s requirements.

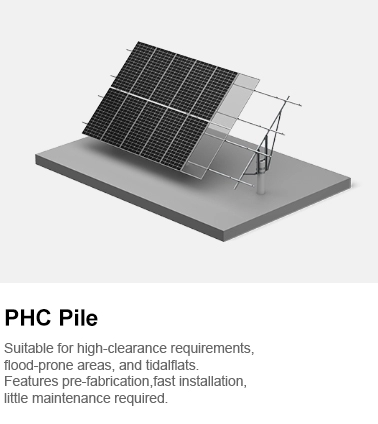

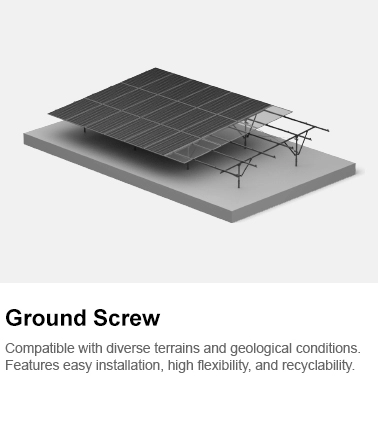

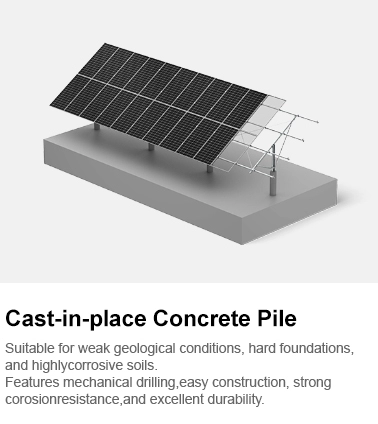

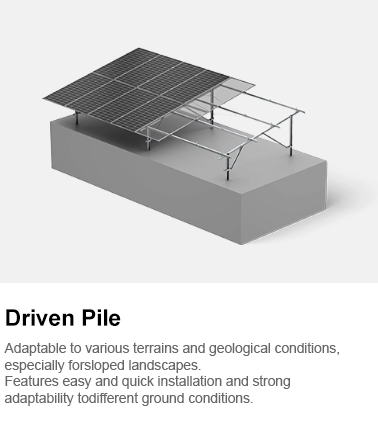

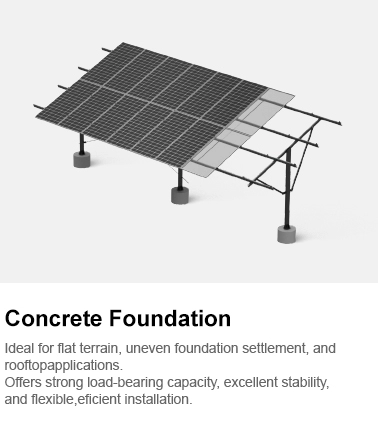

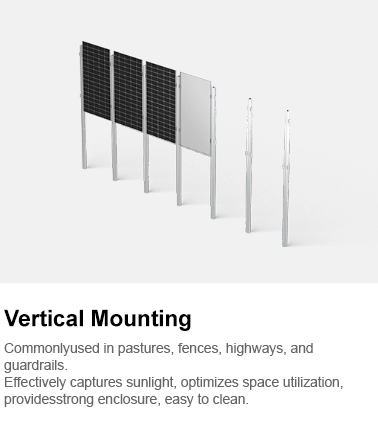

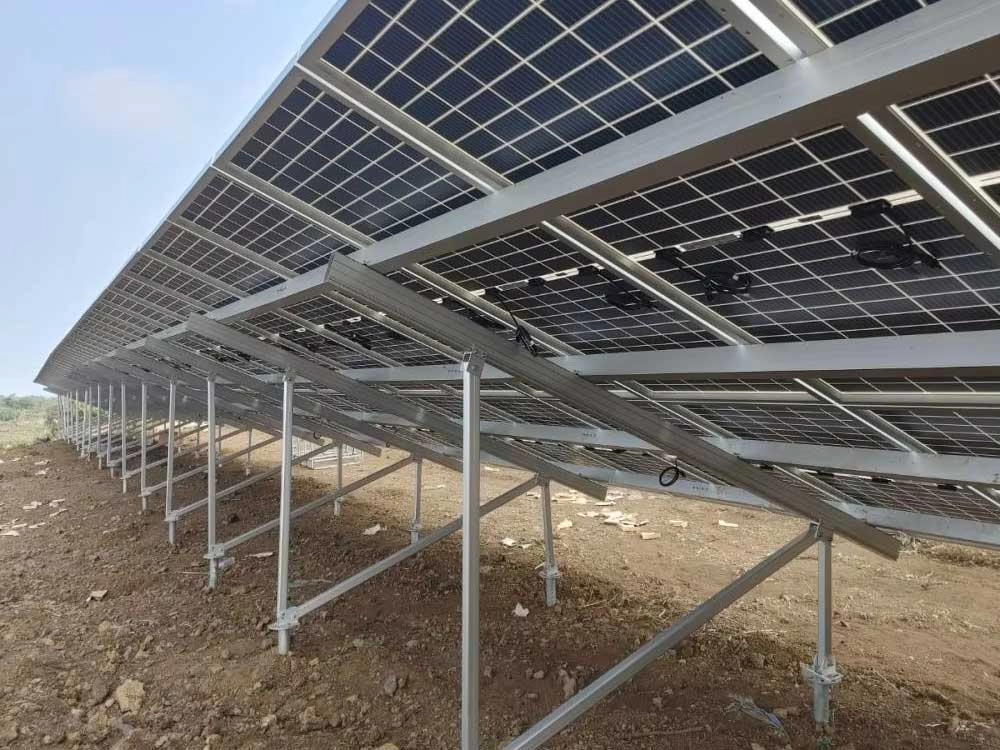

Ground mounting systems

These are separate sections that are connected into conditionally infinite tables with a length of no more than 150 meters, or separate tables of short length.

We are the authors of our ground-based mount systems for solar modules, manufacturers of supporting elements, and can change the configuration to meet customer’s requirements and site specifics.

Depending on the complexity of the terrain and its coverage, the range includes special fasteners to correct unevenness and shifts during installation. The use of such elements simplifies installation and allows for flexible positioning of the guide beams, with spending no additional time.

The structures are made of high-quality structural steel with a zinc coating of 20 to 120 microns, according to ISO 1461: 2009 and customer specifications.

It is possible to manufacture structures for PV modules from 1 to 3 rows in a portrait arrangement. Or of 2-6 rows for landscape format.

Mount systems are suitable for modules with and without frames.

Before supplying the elements of the mount systems, we calculate the load-bearing structures for static loads and develop a set of detailed design documentation with layout drawings, erection joints and technical requirements necessary for installation.

10kw Off Grid Solar System - Grab latest discount price now!

Our projects Solar mounting system is:

4 GW+
More than 4 GW SPPs installed

500 MW+
More than 500 MW of completed projects in the EPC format

2 GW
Integrated in-house manufacture with a capacity of 2 GW/year

3 700+
3 700+ completed roof-top and residential free-standing projects

500+
500 completed large ground-mounted projects

Use of certified products according to the highest international quality standards

Certifications ISO 9001, ISO 14001, ISO 45001, EN 1090 -1,4, SA8000

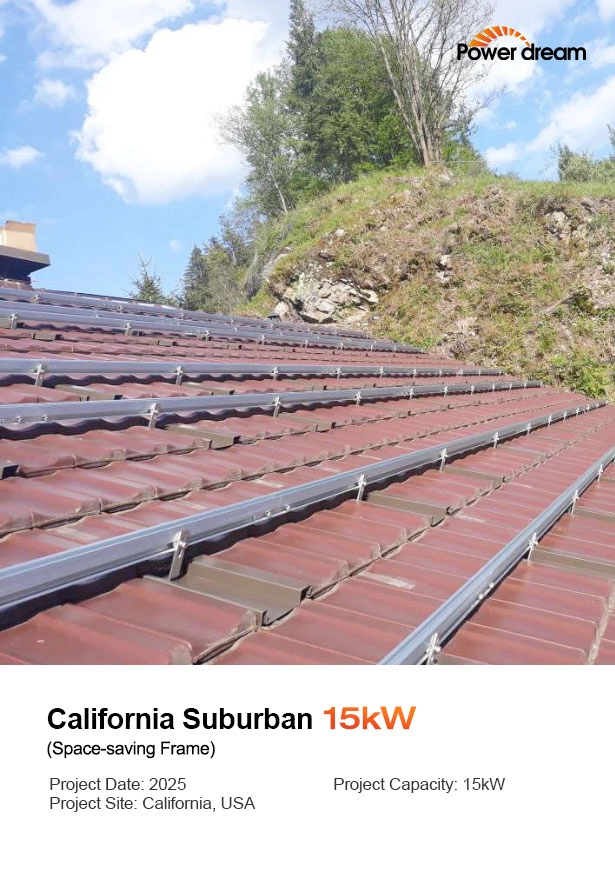

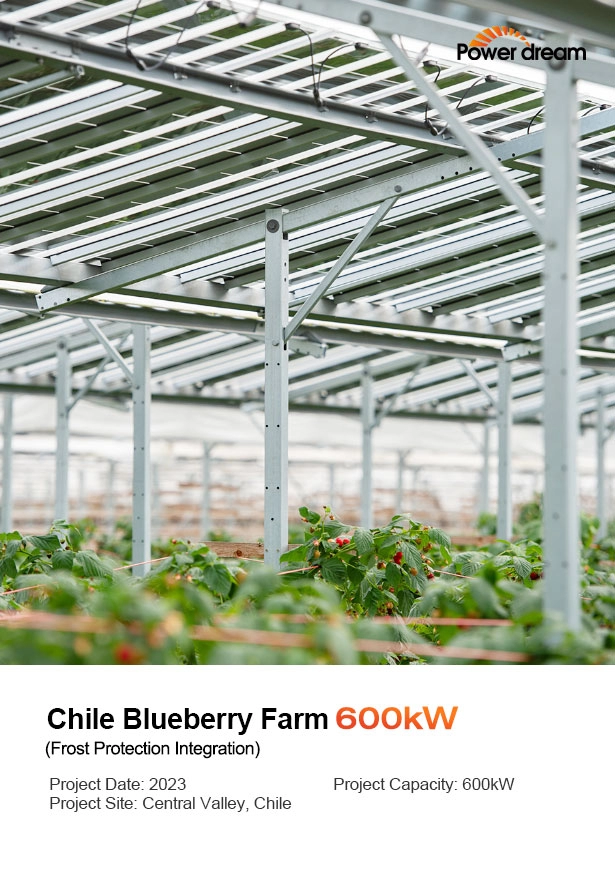

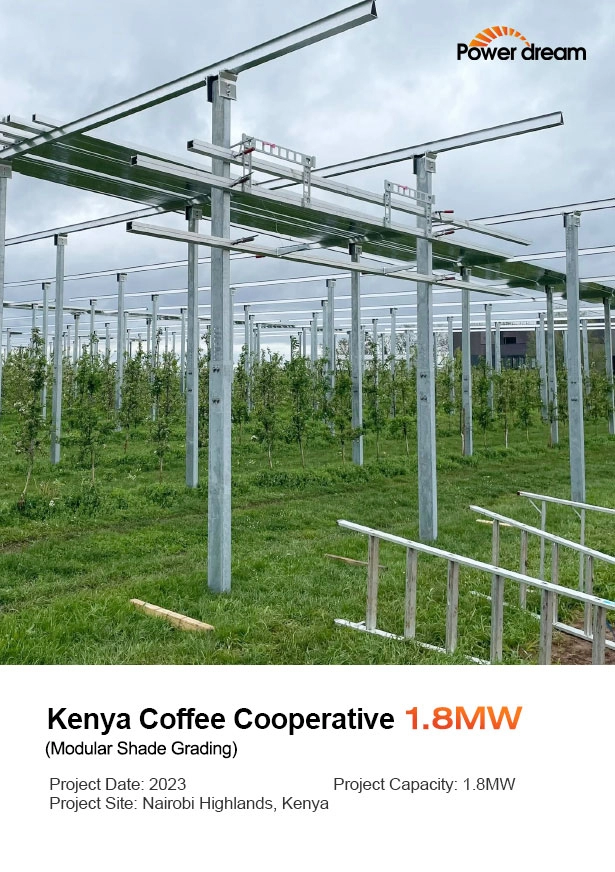

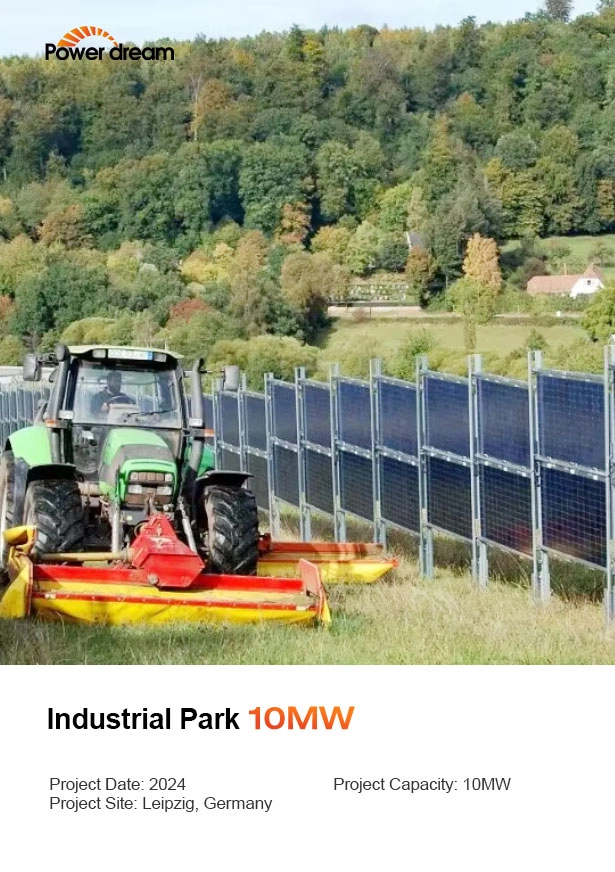

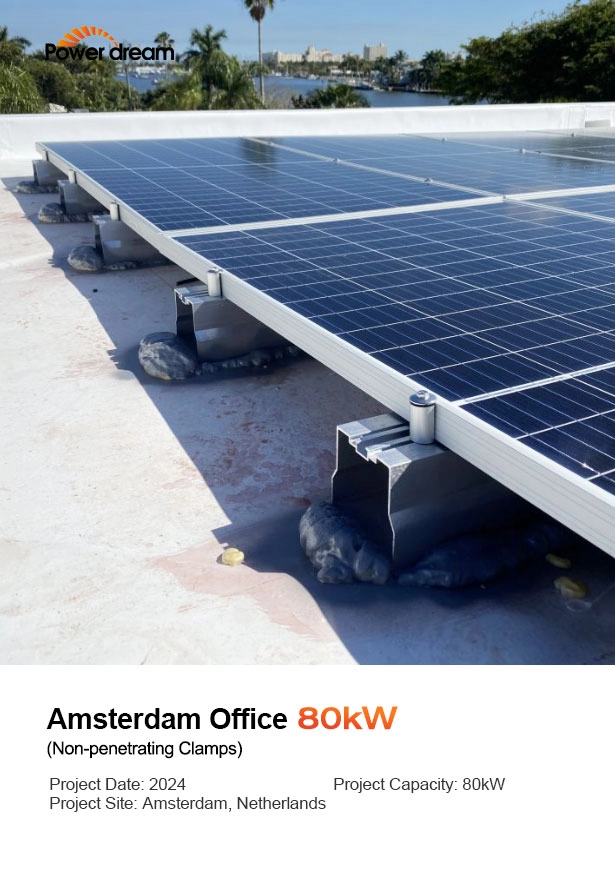

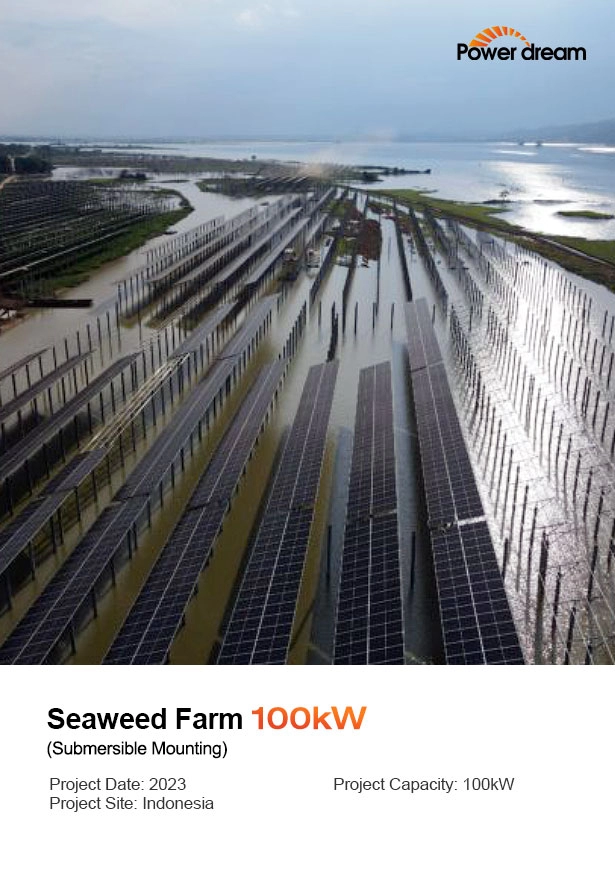

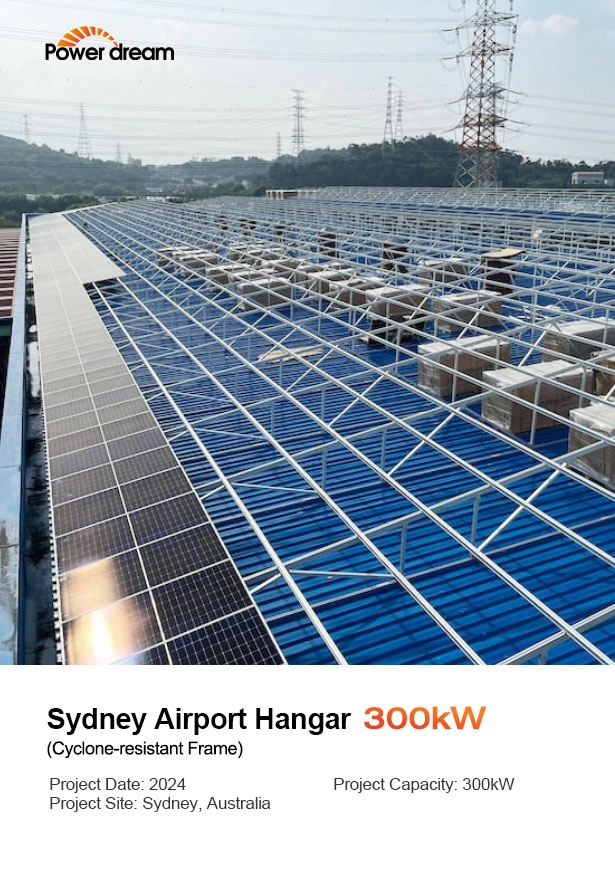

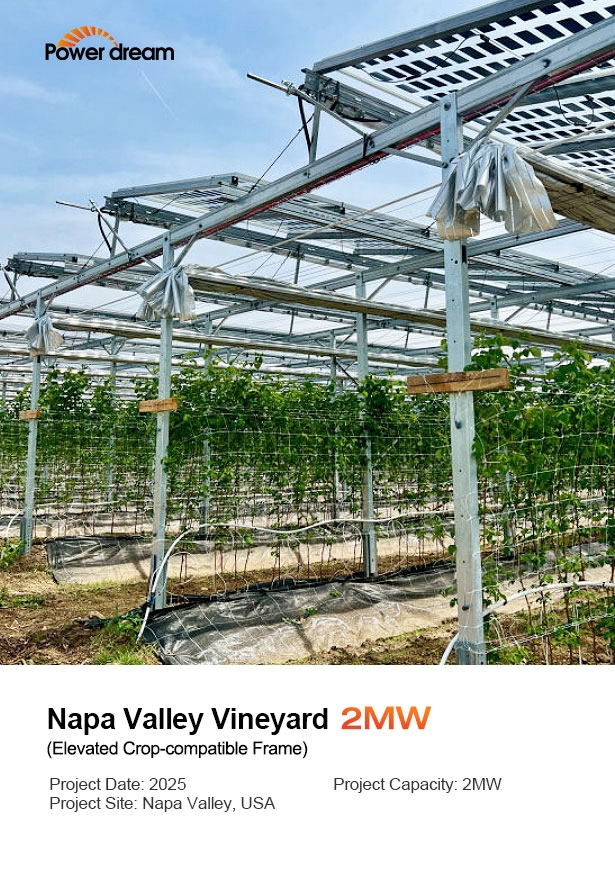

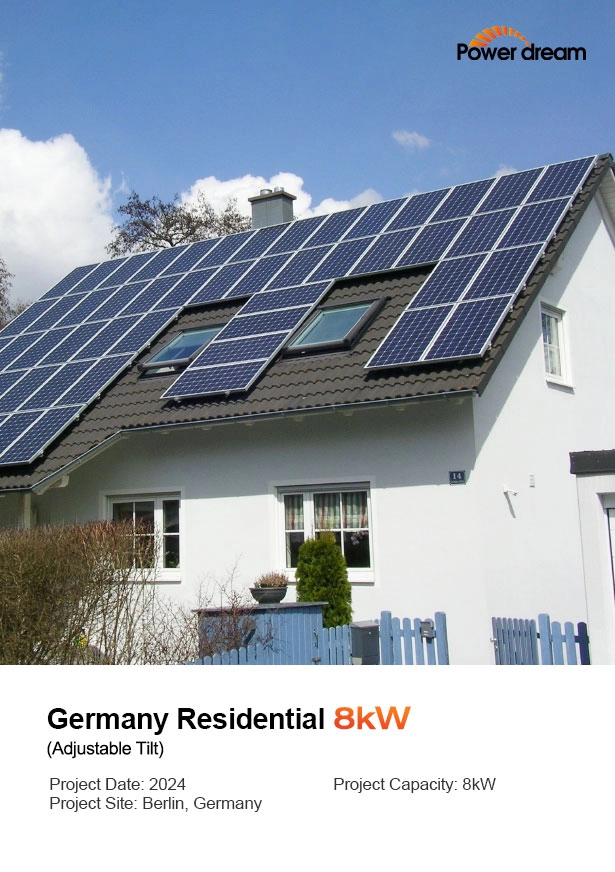

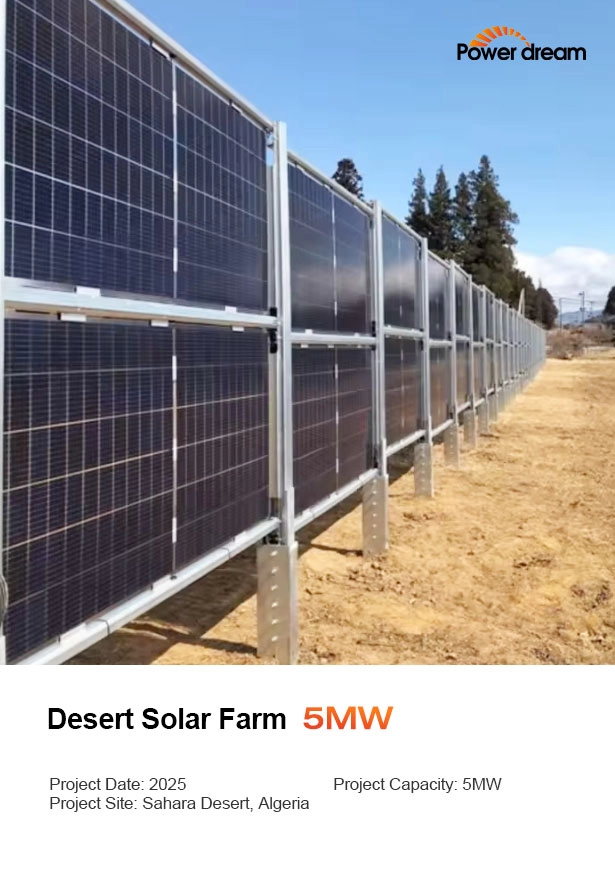

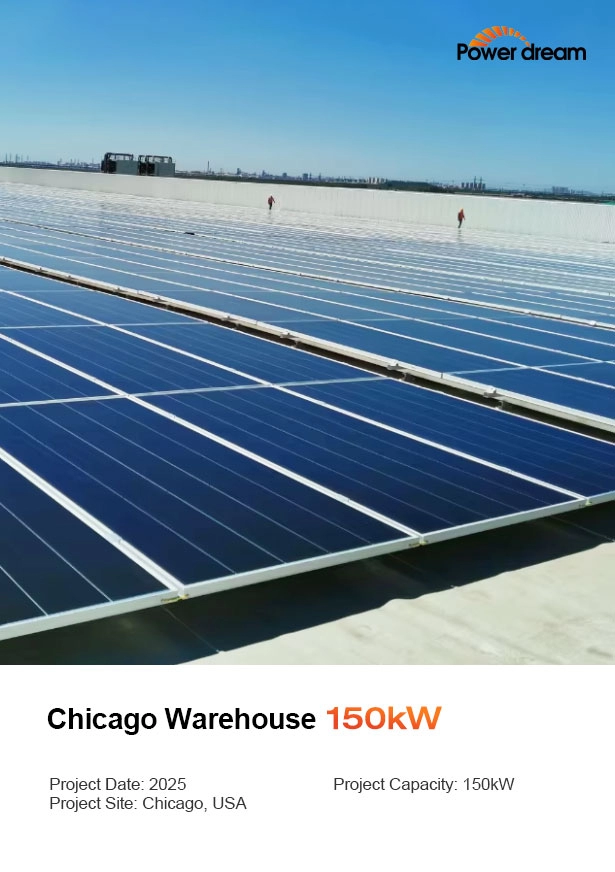

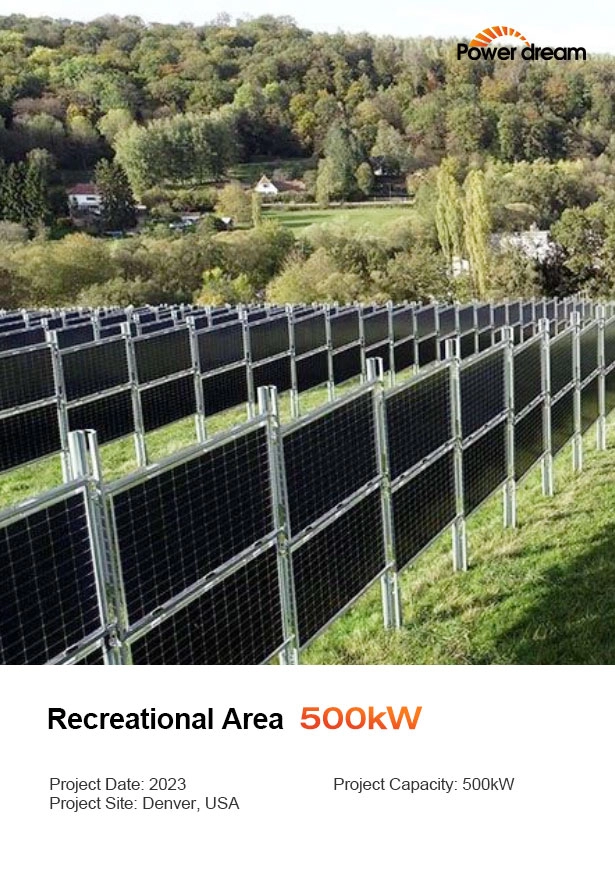

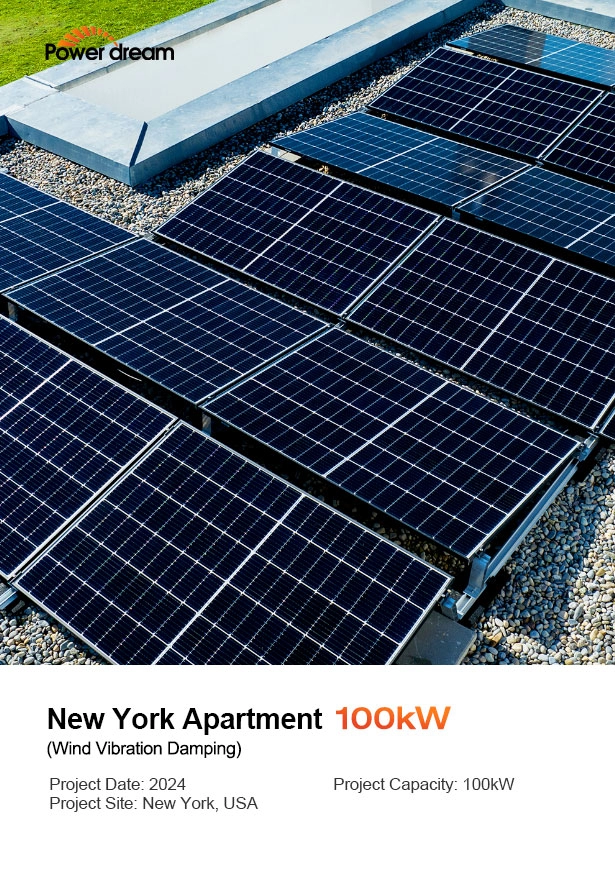

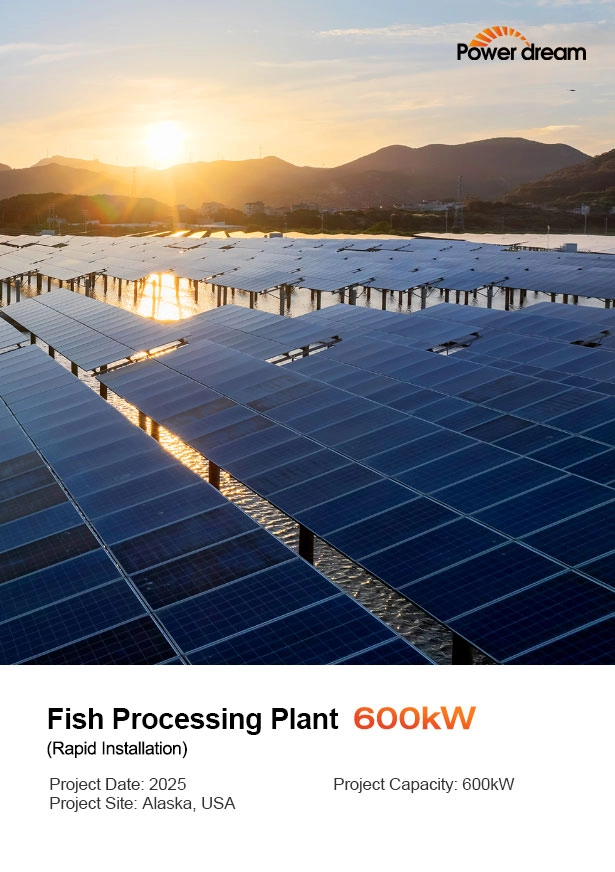

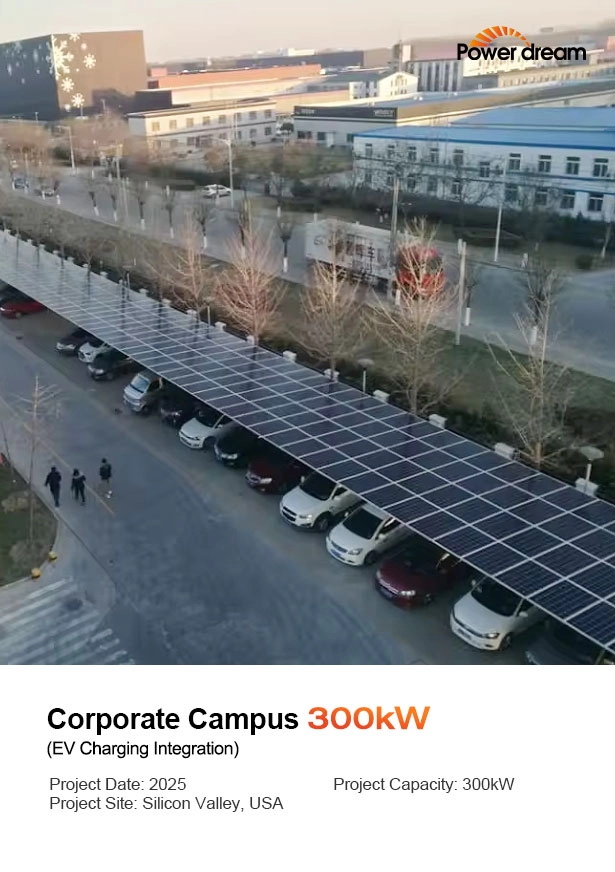

Our Successful Projects

Powerdream provides safe and reliable solar mounting system solutions to clients around the world. We
continually optimize our products to adapt to different climates and installation environments and to ensure your solar supply.

Happy Customers Review

Join the green revolution with a off grid solar system: 5kw solar system. the 5kw solar system cost and price are unbeatable, making it an accessible option for anyone looking to reduce their environmental impact.

Just Reach Out To Us!

We’re ready to Meet Your Solar Project

10kw Off Grid Solar System - Grab latest discount price now!

    Explore Our Latest Product Offerings

    we offer a wide range of solar mounting system solutions that can be customized for adaptability to stormy weather and different geological conditions. Accessories are also available to assist you with the installation of mounting brackets.

    Solar Agriculture Mounting Systems

    Solar Carport Mounting Systems
