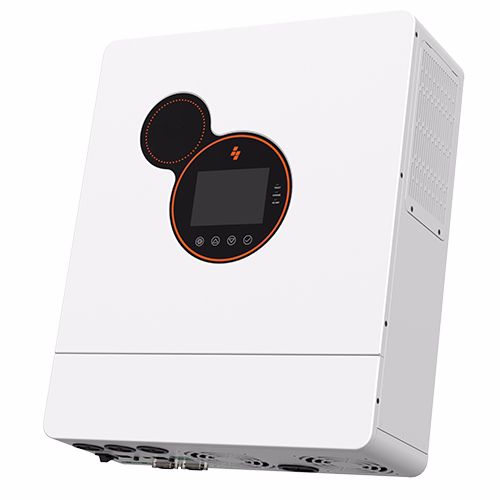

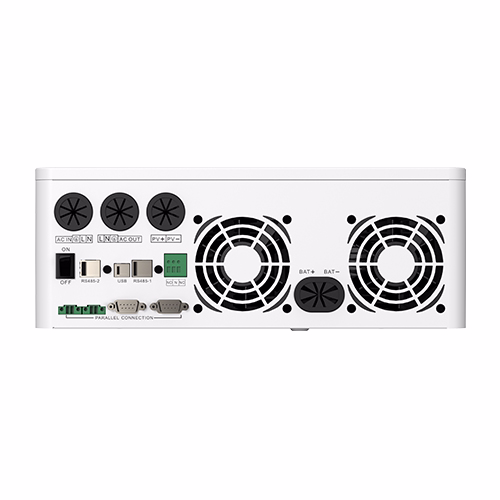

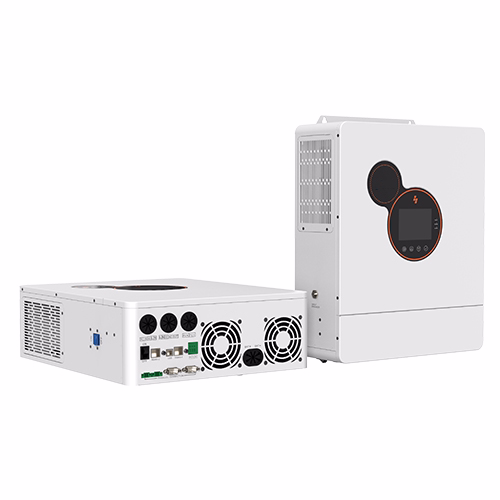

BHYP 5kW Solar Inverter

Single-Phase Off-grid Solar Storage Inverter：

  1. Compatible with 48V storage batteries
  2. Up to 6 units in parallel for 30kW
  3. Time-slot function to save cost with peak-valley
  4. Off-grid/without battery output mode
  5. Supoort Single/Split/Three-Phase
  6. Support BMS communication

Reliable
Optional CT improves safety and reliability

Safety
Support SUB working mode: support Grid and PV hybrid charging
Supports both mains and generator power input with intelligent switching

Intelligent
Support time-sharing charge and discharge function

MODELBHYP4850U100-H
INVERTER OUTPUT
Rated Output Power5,000W
Max. Output Power10,000VA
Rated Output Voltage120Vac（L/N/PE, Single-Phase）
Load capacity of Motors4HP
Rated AC Frequency50/60Hz
WaveformPure sine wave
Switch Time10ms（typical）
BATTERY
Battery TypeLead-acid batteries / Lithium-ion batteries / User-defined
Rated Battery Voltage48V
Battery Volatge Range40～60Vdc
Max. Solar Charging Current100A
Max. Grid/Generator Charging Current40A
Max. Hybrid Charging Current100A
SOLAR INPUT
Num. Of MPPT Trackers1
Max. PV Array Power5,500W
Max. Input Current22A
Max. Open Circuit Voltage500Vdc
MPPT Voltage Range120~450Vdc
GRID/GENERATOR INPUT
Input Voltage Range90～140Vac
Input Frequency Range50/60Hz
Bypass Overload Current63A
EFFICIENCY
MPPT Tracking Efficiency99.9%
Max. Efficiency92%
GENERAL DATA
Parallel Capacity1～6 Units（Single/Split/Three-Phase）
Dimension446.9*350*133mmNoise<60dB
Weight14 kgCooling MethodIntelligent fan
Protection DegreeIP20 Indoor OnlyWarranty2 years
Temperature-15~55℃CommunicationRS485/CAN/USB/Dry Contact
External Module（Optional）Wi-Fi/GPRSTopologyTransformerless
CertificateEN61000/FCC Part15 ClassB/IEC 62109/IEC 62477/IEC 62040/UKCA/The PSE Circle Mark
PROTECTION
Has PV current/power limiting protection、PV night reverse-current protection、Mains input over voltage protection、Mains
input under voltage protection、Battery over voltage protection、Battery low voltage protection、Load output short circuit
protection、Heat sink over temperature protection、Overload protection、PV reverse polarity protection、Bypass over current
protection、AC reverse protection、Battery input over current protection、Battery input protection、Charge short protection、
CAN communication loss protection、Parallel connection error protection、Parallel battery voltage difference protection、
Parallel AC voltage difference protection、Parallel current sharing fault protection、Synchronization signal fault protection.

High Power Output and Motor Compatibility: With a rated output of 5,000W and support for motors up to 4HP, it is ideal for high-demand applications including motor-driven equipment.

Dual High-Current Charging Support: Supports up to 100A solar charging and 40A grid/generator charging, enabling rapid energy replenishment from multiple sources.

Wide Battery Compatibility and Voltage Range: Compatible with Li-ion, lead-acid, and user-defined batteries, operating efficiently within a 40–60V DC range.

High Efficiency and Flexible Parallel Operation: Offers 92% max efficiency and 99.9% MPPT tracking efficiency, with support for parallel connection of up to 6 units for expanded capacity.

Buyer-focused FAQ

Q: What battery types are compatible with this inverter?
A: It supports Li-ion, lead-acid, and user-defined battery types, offering flexibility for different energy storage setups.

Q: How many solar panels can I connect?
A: The inverter can handle up to 5,500W of PV array power with a maximum open-circuit voltage of 500V DC.

Q: What happens during a power outage?
A: It switches to backup power in just 10ms, ensuring uninterrupted operation for sensitive devices.

Q: Can I expand the system in the future?
A: Yes, it supports parallel connection of up to 6 units for increased output capacity in single or three-phase configurations.

Q: What protection features are included?
A: It includes comprehensive protections such as PV reverse polarity, battery over-voltage, overload, short circuit, and temperature protection, ensuring safe and reliable operation.
