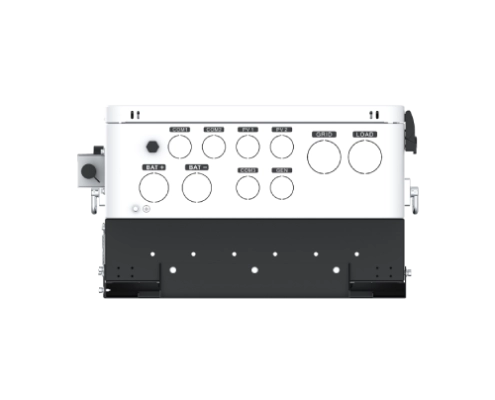

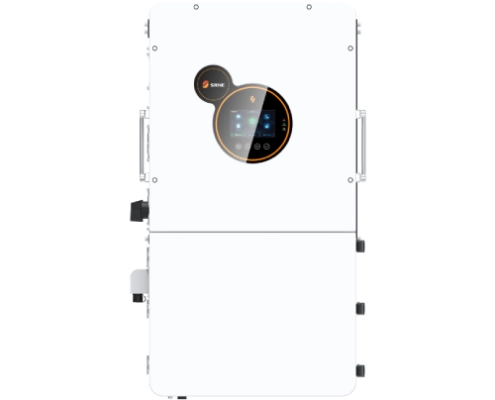

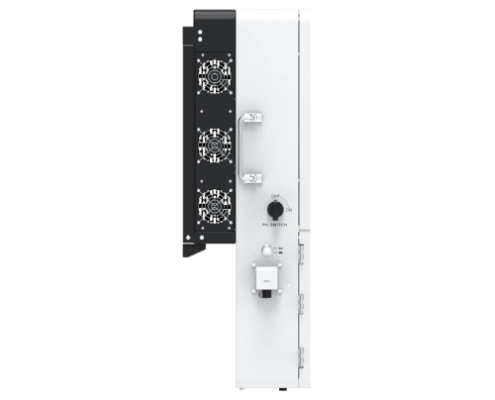

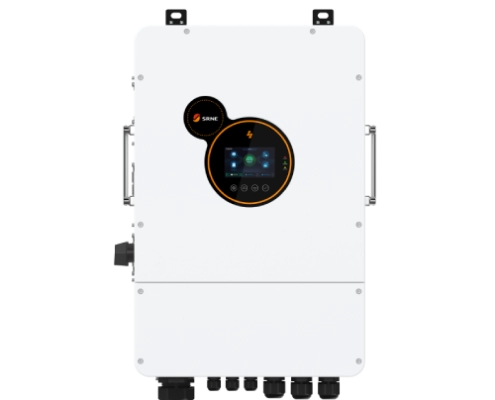

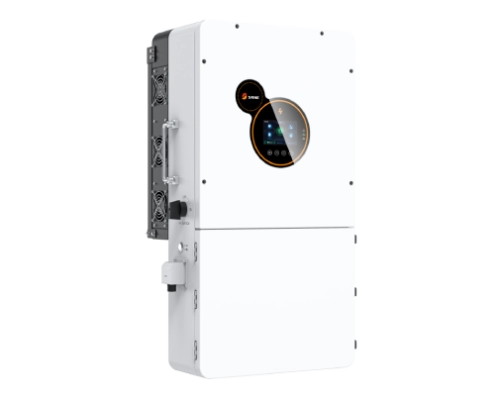

BHESP 8-12kW Solar Inverter
BHESP 8-12kW Solar Inverter
BHESP 8-12kW Solar Inverter
BHESP 8-12kW Solar Inverter
BHESP 8-12kW Solar Inverter
BHESP 8-12kW Solar Inverter
BHESP 8-12kW Solar Inverter
BHESP 8-12kW Solar Inverter
BHESP 8-12kW Solar Inverter
BHESP 8-12kW Solar Inverter
BHESP 8-12kW Solar Inverter

BHESP 8-12kW Solar Inverter

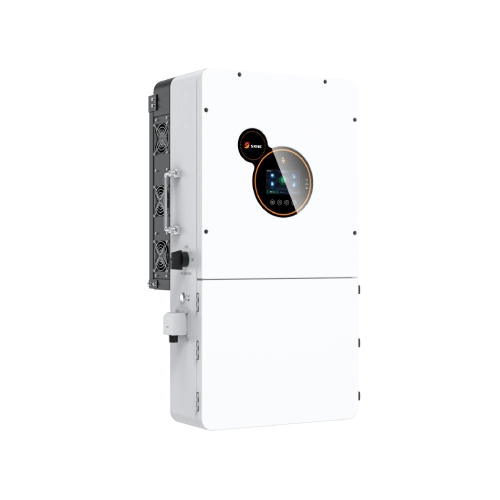

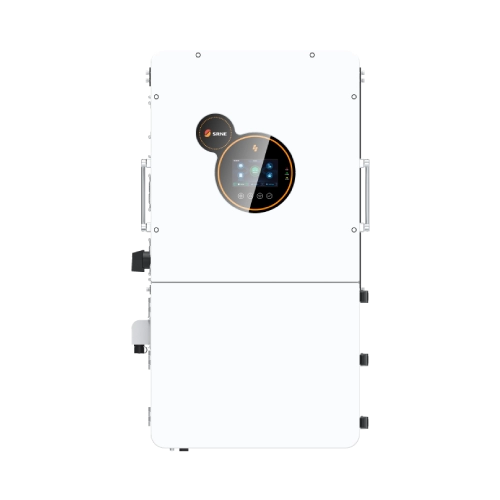

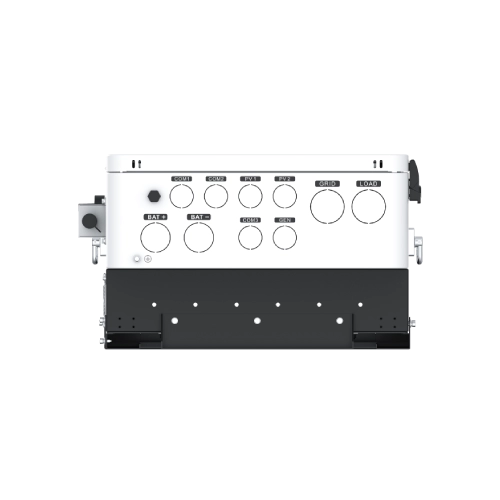

The BHESP 8-12kW solar inverter is a split phase hybrid solar storage inverter. As a professional hybrid solar-storage inverter, it integrates solar power conversion, grid interaction, and battery storage management into a single compact unit, eliminating the need for separate inverters and controllers. Unlike traditional string inverters, this hybrid inverter supports both on grid and off grid modes, enabling users to maximize solar power, reduce grid dependence, and ensure power supply during outages.

Split Phase Hybrid Solar Storage Inverter：

  1. Compatible with 48V storage batteries
  2. 2 efficient, independent MPPT ports
  3. Separate generator port
  4. Support AC-coupling
  5. Support time-slot function for peak-valley
  6. IP65 waterproof protection degree

Reliable
Optional CT improves safety and reliability

Safety
Support SUB working mode: support Grid and PV hybrid charging
Supports both mains and generator power input with intelligent switching

Intelligent
Support time-sharing charge and discharge function

Request a quote

BHESP 8-12kW Solar Inverter Specifications：

ModelBHESP4880U200-HBHESP48100U200-HBHESP48120U200-H
AC OUTPUT（LOAD）
Rated Output Powe8,800W10,000W12,000W
Max. Output Power17,600VA20,000VA24,000VA
Rated Output Voltage120/240Vac，120/208Vac (Single/Split-phase/three phase(Parallel))
Load Motor Capacity5HP6HP
Rated Frequency50/60Hz ±0.3
Switch Time10ms（Typical）
AC OUTPUT（GRID）
Rated Output Power8,800W10,000W12,000W
Max. Output Power8,800VA10,000VA12,000VA
Rated Output Current36.6A41.7A50A
Max. Output Current42.3A48.1A50A
Power Factor0.8 leadding/0.8 lagging
THD<3%
BATTERY
Battery TypeLead-Acid / Li-ion / User-Define
Rated Battery Voltage48V
Battery Volatge Range40～60Vdc
Max. Solar Charging Current200A
Max. Generator Charging Current60A
Max. Grid Charging Current120A
Max. Hybrid Charging Current200A
SOLAR INPUT
No. Of MPPT2
Max. Input Power5,500W+5,500W
Max. Input Current25A+25A
Max. Open Circuit Voltage550Vdc+550Vdc
MPPT Voltage Range125~450Vdc
GRID/GENERATOR INPUT
Input Voltage Range90～140Vac
Input Frequency Range50/60Hz
EFFICIENCY
MPPT Tracking Efficiency99.9%
Max. Efficiency97.5%
GENERAL DATA
Parallel Capacity1～6 Units（More than 2 units in parallel can form a three-phase output）
Dimension750*440*240mmHumidity0～100%
Weight42kgCooling MethodFan Cooling
Protection DegreeIP65Warranty5 years
Temperature-25～60°C, >45°C DerateCommunicationRS485/CAN/USB/Dry Contact
External Module（Optional）Wi-Fi/GPRSTopologyTransformerless
PROTECTION
PV Reverse ProtectionYesAnti-Islanding ProtectionYes
Residual-Current MonitoringYesInsulation Resistance MonitoringYes
Output Short-Circuit ProtectionYesOutput Over-Current ProtectionYes
Over-Voltage ProtectionAC type II/DC type IIISurge ProtectionAC type II/DC type II

Unmatched Power Flexibility

Multi-Phase Scalability
Single unit: 120/240V split-phase
2+ units parallel:  Can create 120/208V three-phase power (no minimum 3-unit requirement).

Hybrid Solar Inverter For Ultimate Charging Performance：

200A Max Hybrid Charging (Solar + Grid):
Recharges 20kWh battery in <1.5 hours under full sun – fastest in class.

200A Dedicated Solar Charging:
Fully utilizes high-irradiance periods for zero-grid-cost operation.

All-Environment Operation:
This hybrid inverter is IP65-rated (dustproof/waterproof) with a + – 25°C to 60°C operating range – survives deserts to arctic sites.

Grid Attack Defense:
DC Type III + AC Type II surge protection
Dual-layer monitoring: Residual current + insulation resistance detection.

Ultra-Clean Power
<3% THD + 0.8 leading/lagging PF – meets hospital/factory power quality standards.

Rapid Failover
10ms grid-to-battery switch – no downtime for sensitive equipment.

Common Questions When Purchasing a BHESP 8-12kW Solar Inverter

Q: How fast can it restore power during outages to avoid $10k+/hour downtime?
A:10ms grid-to-battery switch (20× faster than human blink)
200A hybrid charging → Refills 20kWh battery in <1.5 hrs (industry’s fastest recovery).

Q: Will it pass strict grid compliance audits (e.g., IEEE 519/EN50549) to avoid $50k+ fines?
A: Certified <3% THD (vs. 5% industry avg.) 0.8 leading/lagging PF + VDE surge protection → Guaranteed compliance. Q: How much will low efficiency and 2-year warranties really cost me over 5 years?
A:97.5% efficiency → Saves 1,200+ kWh/year vs. 94% competitors ($240+/year)
5-year warranty → Avoids $4,000+/unit replacement costs at Year 3.

Q: Can it survive coastal storms/dusty mines without $800+ enclosures?
A: IP65 rating → Dust/waterproof (install directly outdoors)
-25°C to 60°C operation → Zero added heating/cooling costs.

Q: What if I need to upgrade batteries later – will I be forced into proprietary traps?
A: This hybrid solar storage inverter works with any 40-60V battery (Li-ion/lead-acid/custom)
Plug-and-play parallel scaling → Expand capacity freely (no re-wiring).

Explore Our Latest Inverter Products Offerings

we offer a wide range of solar energy system solutions that can be customized for adaptability to stormy weather and different geological conditions.

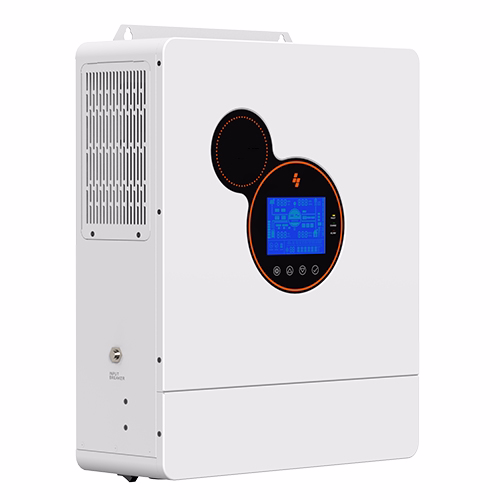

BHYP 5kW Solar Inverter

Load Motor Capacity: 4HP
Max. Output Power: 10,000VA
MPPT Efficiency: 99.9%
Max. Efficiency: 92%

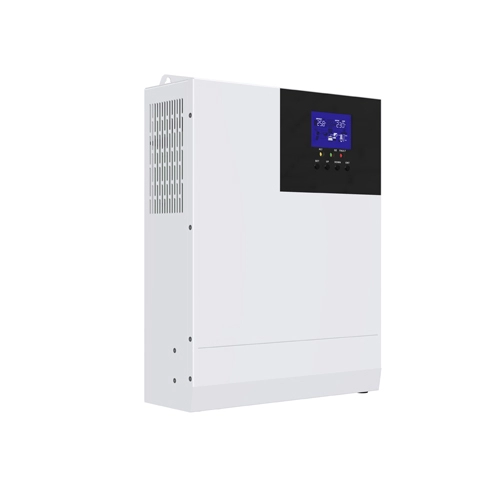

BHF 3kW Solar Inverter
