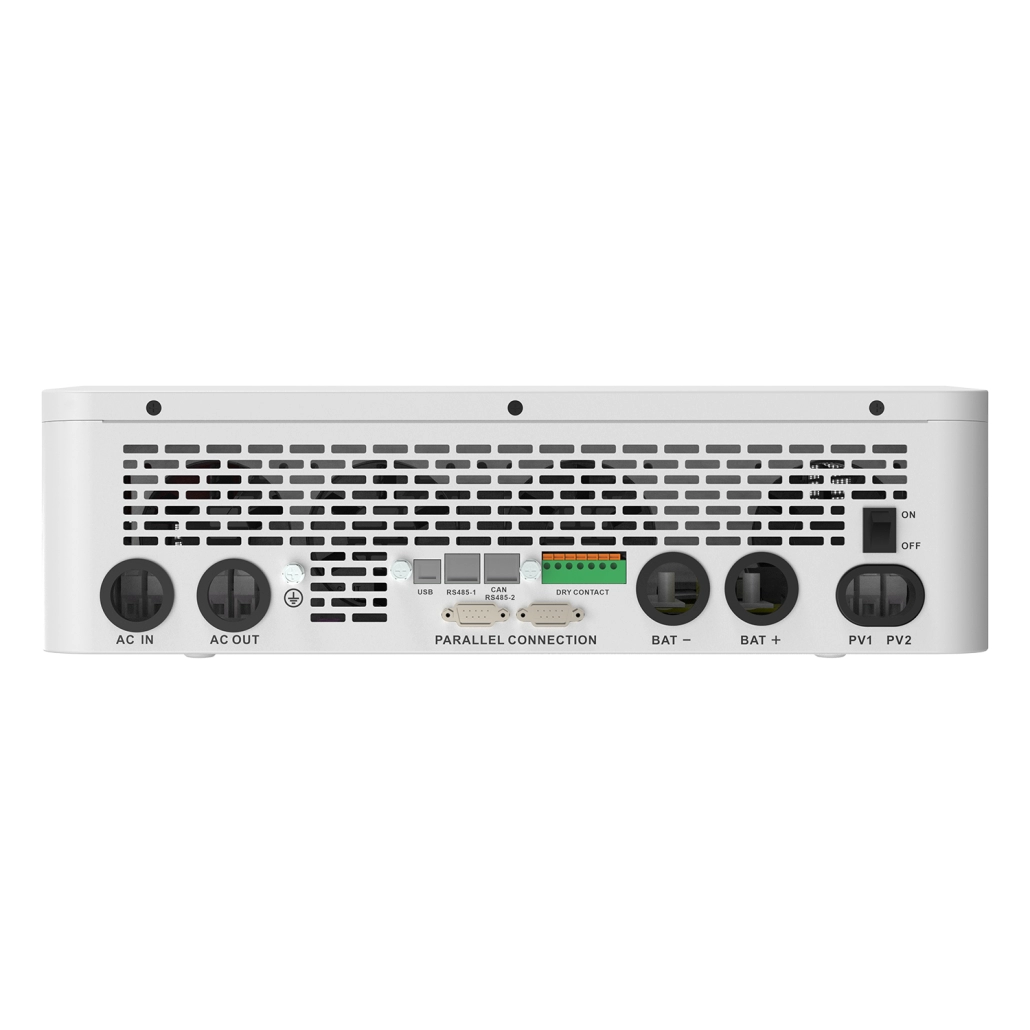

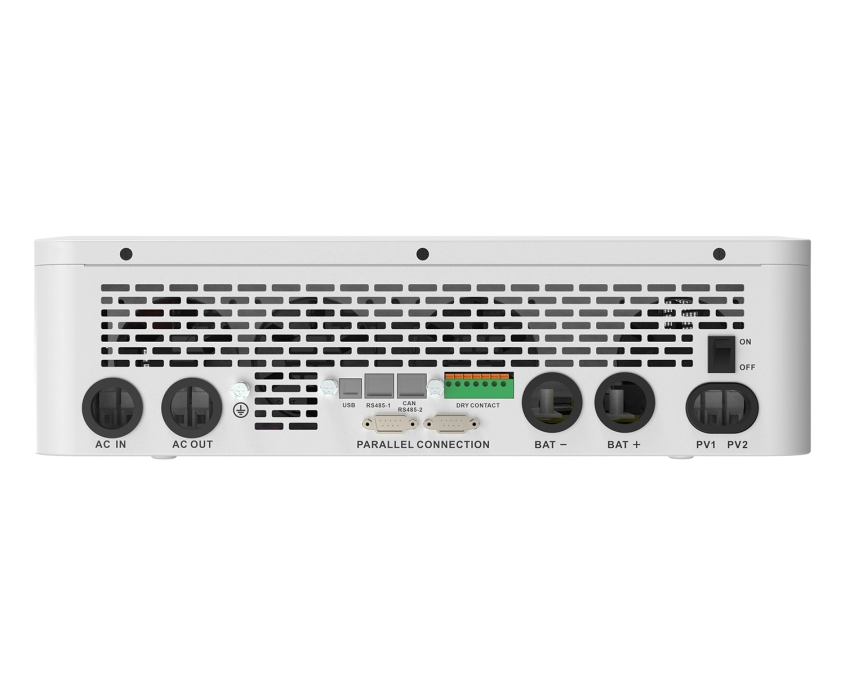

BASP 8-10kW Solar Inverter

Split/Single-Phase Off-grid Solar Storage Inverter：

  1. Compatible with 48V storage batteries
  2. 2 efficient, independent MPPT ports
  3. Support self-use/without battery output mode
  4. The energy-saving mode reduces no-load energy loss.
  5. Support time-slot function for peak-valley
  6. Up to 6 units in parallel for 60kW

Efficient
Solar Charger Controller up to 140A charging current

Reliable
Optional CT improves safety and reliability

Safety
Support SUB working mode: support Grid and PV hybrid charging
Supports both mains and generator power input with intelligent switching

Intelligent
Support time-sharing charge and discharge function

ModelASP4880U180-HASP48100U200-H
Rated Output Power8,000W10,000W
Max. Output Powe16,000VA20,000VA
Rated Output Voltage120Vac, single-phase/240Vac，split-phase
Load capacity of Motors5HP6HP
Rated AC Frequenc50/60Hz
WaveformPure sine wave
Output ModeOff-grid (default) / power the load without battery
Switch Time10ms（typical）
BATTERY
Battery TypeLi-ion / Lead-acid / User-defined
Rated Battery Voltage48V
Battery Volatge Range40～60Vdc
Max. Solar Charging Current180A200A
Max. Grid/Generator Charging Current100A120A
Max. Hybrid Charging Current180A200A
SOLAR INPUT
No. Of MPPT2
Max. PV Array Power5,500W+5,500W
Max. Input Current22A+22A
Max. Open Circuit Voltage500Vdc+500Vdc
MPPT Voltage Range125~425Vdc
GRID/GENERATOR INPUT
Input Voltage Range90~140Vdc
Input Frequency Range50/60H
Bypass Overload Current63A
EFFICIENCY
MPPT Tracking Efficiency99.9%
Max. Efficiency92%
GENERAL DATA
Parallel Capacity1～6 Units（More than 3 units in parallel can form a three-phase output）
Dimension620*445*130mmNoise<60dB
Weight27kgCooling MethodBuilt-in fan
Protection DegreeIP20 Indoor OnlyWarranty2 years
Temperature-10-55°C, >45°C DerateCommunicationRS485/CAN/USB/Dry Contact
External Module（Optional）Wi-Fi/GPRSTopologyTransformerless
CertificateRoHs/EN61000-6-1/EC61000-6-3/FCC Part15 ClassB/IEC62109-1/IEC62109-2/UL174
PROTECTION
Has PV input current limiting protection、PV input over-voltage、PV night reverse current protection、AC input overvoltage protection、AC input under-voltage protection、Battery over-voltage protection、Battery under-voltage
Protection、Battery over-current protection、AC output short-circuit protection、Heat sink over-temperature protection、
Inverter over-load protection.

Industry-Leading Efficiency
Ultra-High Tracking Efficiency
99.9% MPPT efficiency – Maximizes solar energy harvest under varying conditions.

Peak System Performance
92% max. conversion efficiency – Minimizes energy loss during operation.

Robust Power & Scalability
High Power Output
8kW/10kW rated power | 16kVA/20kVA surge capacity – Supports heavy loads (e.g., 5–6HP motors).

Flexible Expansion
1–6 units parallel capability | 3+ units enable 3-phase output – Scales from residential to commercial use.

Intelligent Triple-Charge Control
Rapid Charging Capabilities
Solar charging: Up to 180A/200A (industry-leading speed).
Grid/Generator charging: Up to 100A/120A.
Hybrid charging: Combines solar + grid for 40%+ faster charging.

Battery Agnostic
Works with Li-ion/Lead-acid/Custom batteries (40–60V range).

Unmatched Reliability & Safety
Comprehensive Protection
14-layer safety system – PV reverse current, over-voltage, short-circuit, temperature derating, etc.

Zero-Battery Operation
Direct PV-to-load power – Critical for grid-unstable regions (no battery required).

Seamless Transition
≤10ms grid/battery switch – Protects sensitive electronics from outages.

Buyer-focused FAQ

Q: Will it handle sudden power surges from heavy equipment (e.g., motors)?
A: Yes. Surge capacity up to 20kVA (200% overload) supports 6HP motors instantly.

Q: What if my battery voltage doesn’t match?
A: Works with 40–60V Li-ion/Lead-acid/custom batteries – no voltage converters needed.

Q: How reliable is it during grid blackouts?
A: ≤10ms switch time (faster than a blink) + battery-less PV-to-load mode ensures zero interruption.

Q: Can it survive extreme heat?
A: Operates at full load up to 45°C, with automatic derating beyond that to protect components.

Q: How do I monitor performance remotely?
A: Built-in RS485/CAN/USB + optional Wi-Fi/GPRS modules enable real-time global monitoring.

Q: How fast can it charge my battery bank?
A: 200A max solar charging – refills a 10kWh Li-ion bank in <3 hours (under ideal sun).
