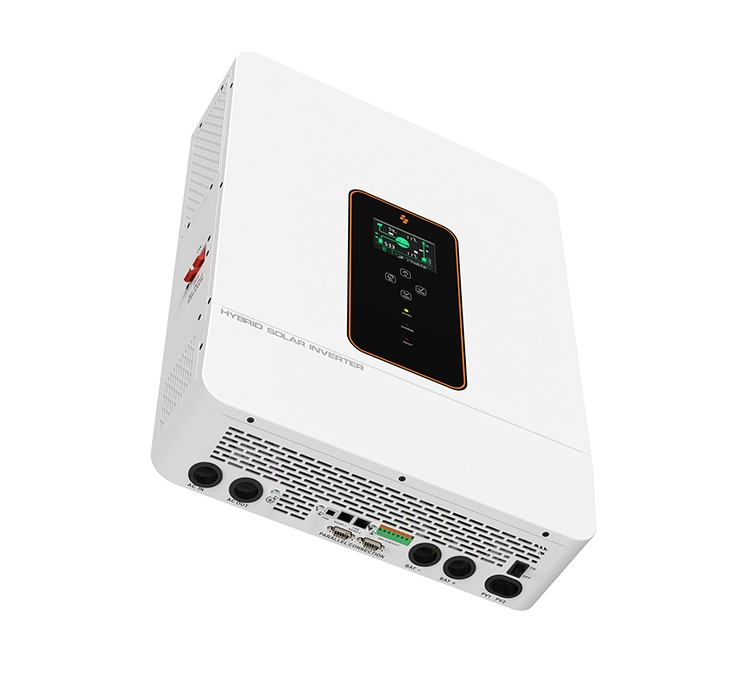

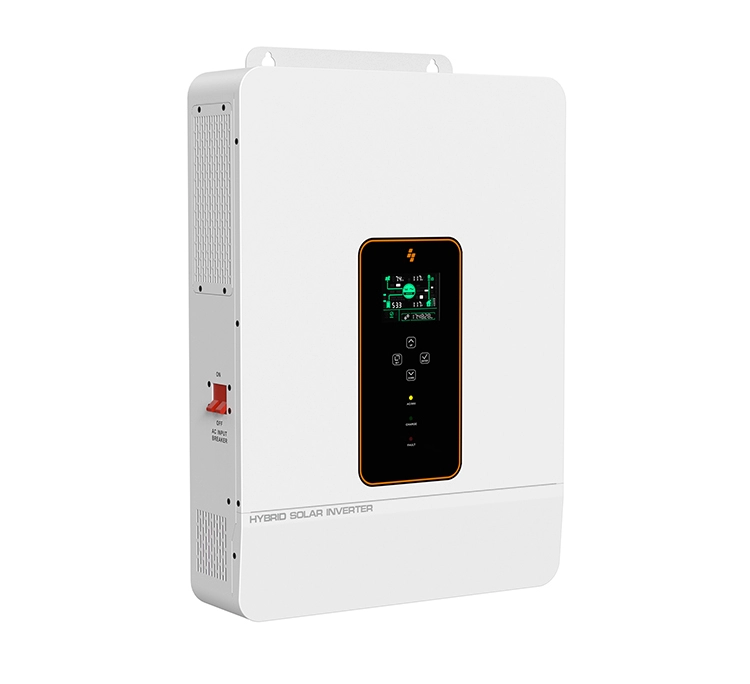

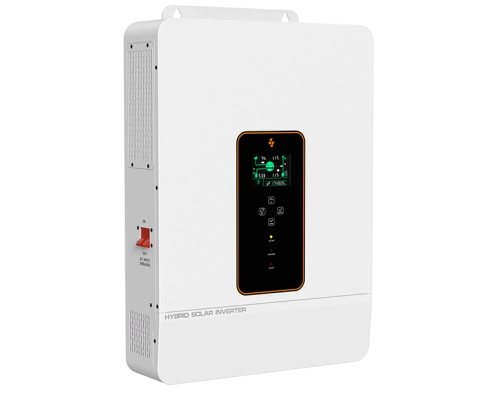

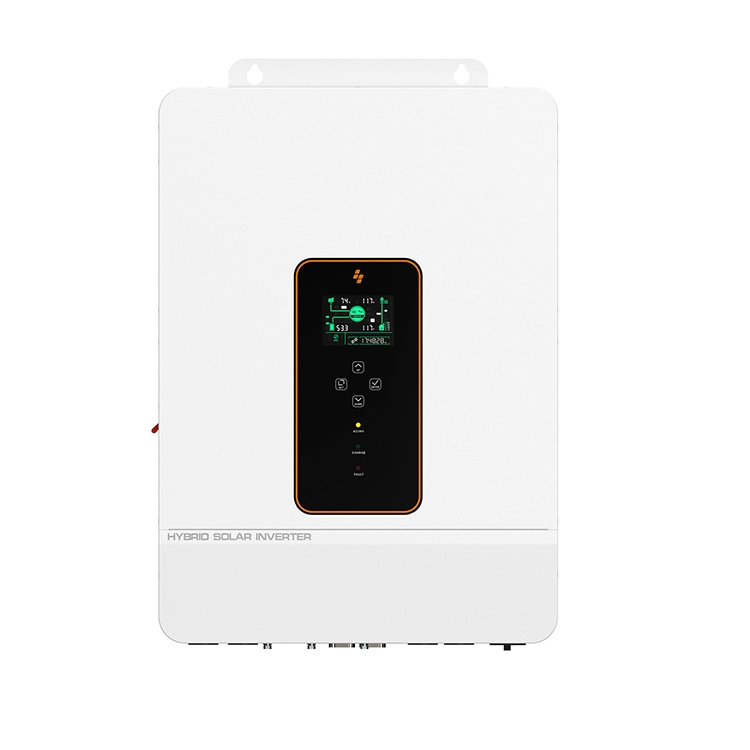

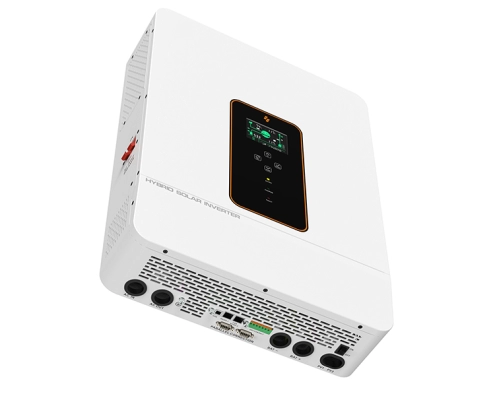

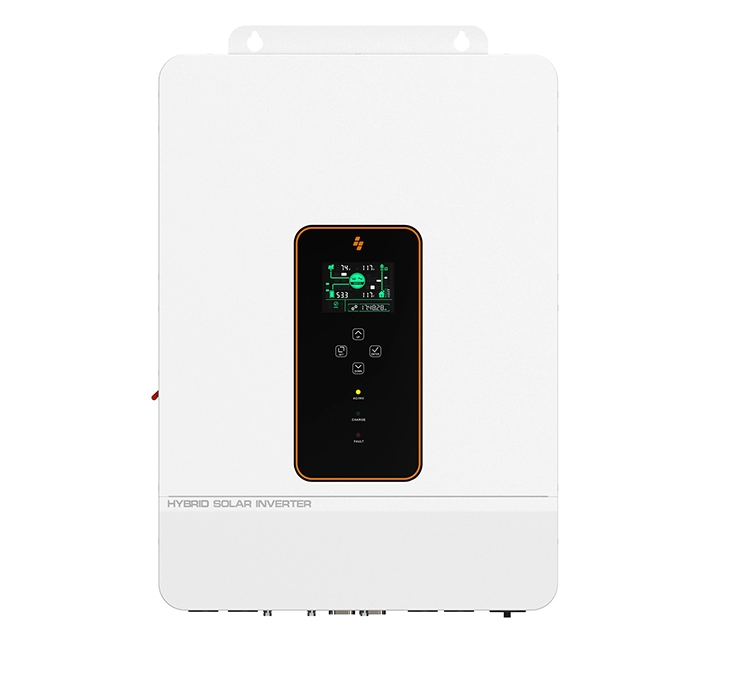

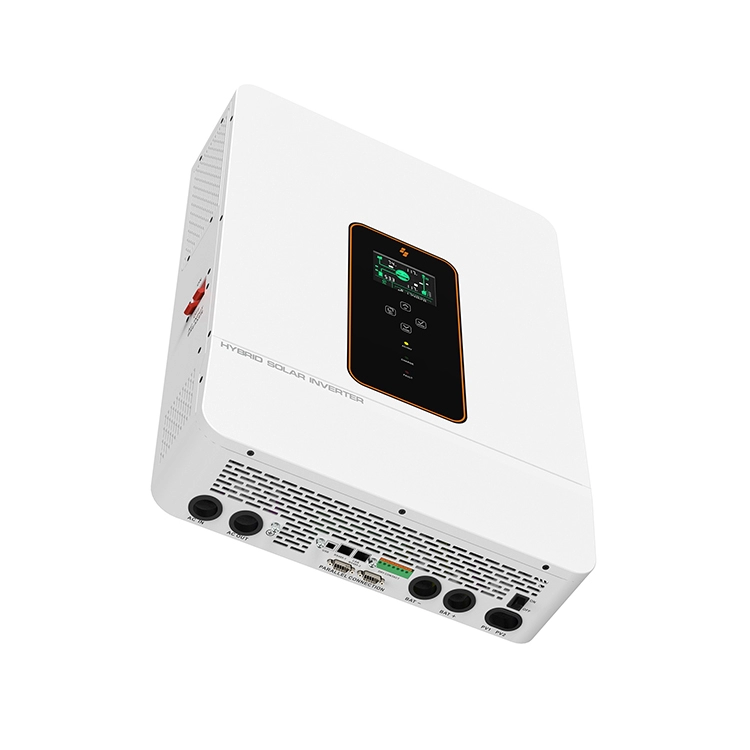

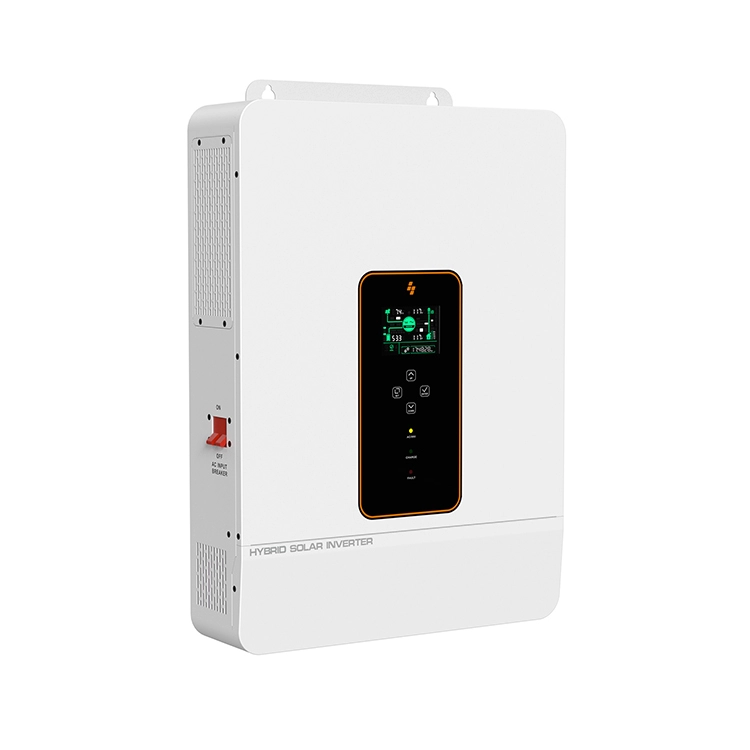

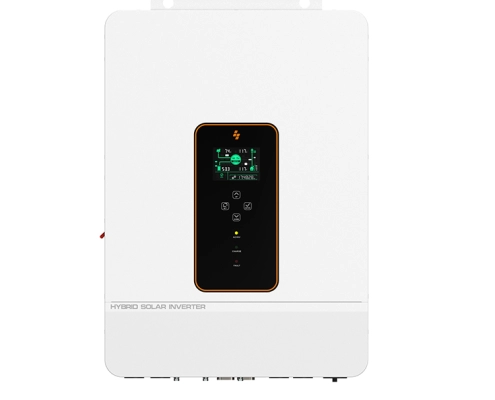

BASP 4-6.5kW Solar Inverter

Split/Single-Phase Off-grid Solar Storage Inverter：

Used with 48V energy storage battery
Two efficient independent MPPT ports are available
Two output modes, mains bypass output and inverter output, provide uninterrupted power supply
Support time-sharing charge and discharge function
Support 6 parallel machines up to 39kW

Efficient
Solar Charger Controller up to 140A charging current

Reliable

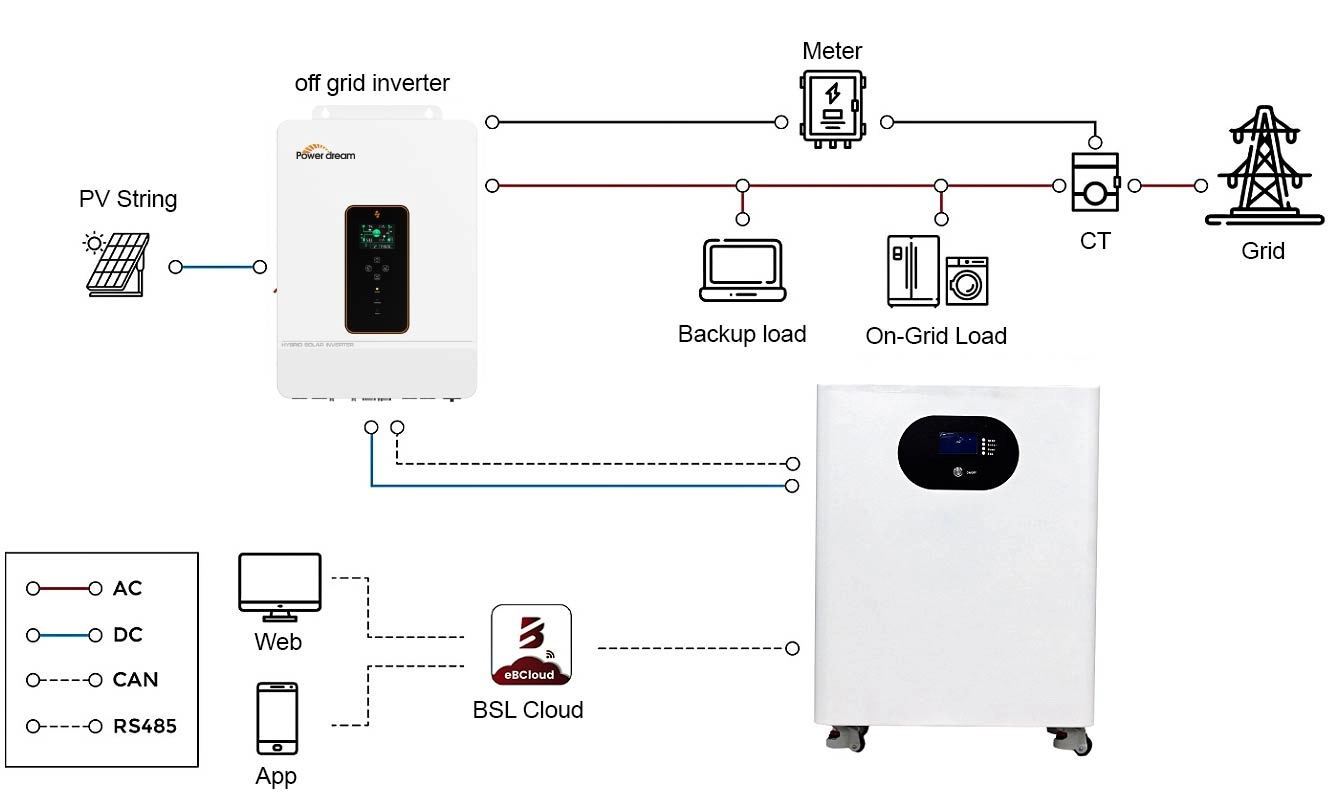

Optional CT improves safety and reliability

Safety
Support SUB working mode: support Grid and PV hybrid charging
Supports both mains and generator power input with intelligent switching

Intelligent
Support time-sharing charge and discharge function

BASP 4-6.5kW Solar Inverter Core Technical Advantages

High Power Output & Scalability:
Models range from 4000W to 6500W rated output.
High surge capacity: Max output power reaches 8000VA to 13000VA (approx. 2x rated).
Support for parallel operation (1-6 units), enabling high-power systems and the ability to form three-phase output with 4+ units.

Versatile Battery Compatibility & Fast Charging:
Supports multiple battery types: Lithium-ion, Lead-acid, and User-defined batteries.
High charging currents:
Up to 80A Max Grid/Generator Charging.
Up to 140A Max Hybrid Charging Current, enabling very rapid battery replenishment.

Pure Sine Wave & Grid Support:
Delivers pure sine wave output, essential for sensitive electronics.
Fast switch time (10ms typical) for seamless backup during grid failure.
Wide grid/generator input voltage range (65-140Vac) for compatibility in areas with unstable grids.

High Efficiency & Robust Design:
High Max Efficiency: 93%.
Compact Size & Manageable Weight: Dimensions (584.6mm x 410mm x 133mm) and weight (18.9kg) are competitive for the power class.
Quiet Operation: Low noise level < 60dB.

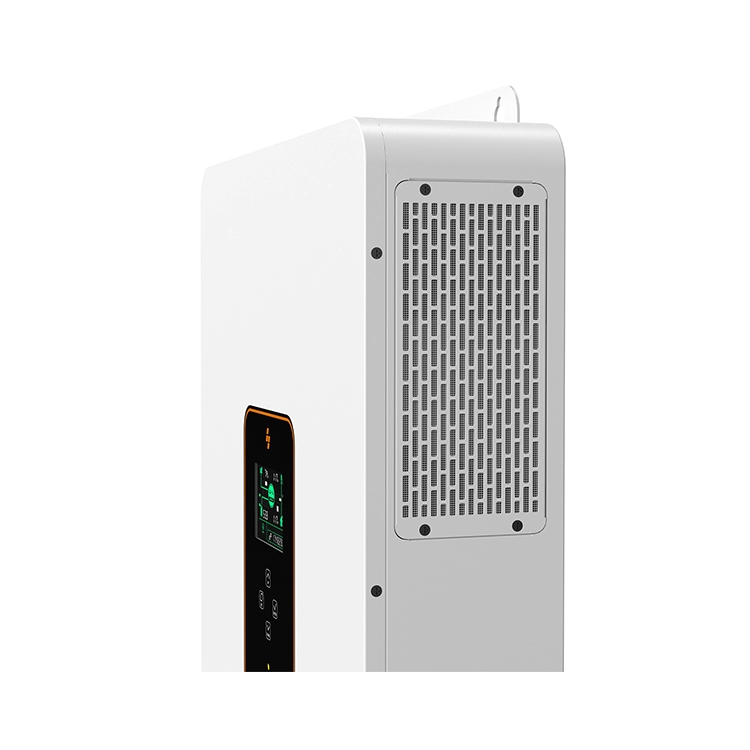

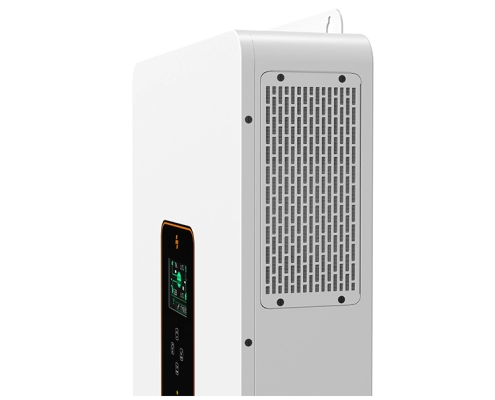

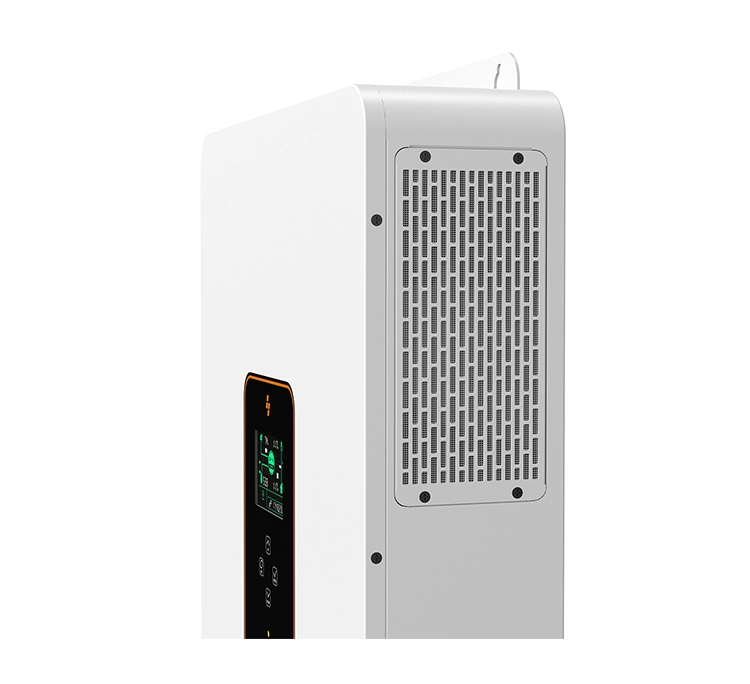

Intelligent Fan Cooling ensures optimal thermal management.

ModelASP4840U100-HASP4850U120-HASP4860U140-HASP4865U140-H
INVERTER OUTPUT
Rated Output Power4,000W5,000W6,000W6,500W
Max. Output Powe8,000VA10,000VA12,000VA13,000VA
Rated Output Voltage120Vac, single-phase/240Vac，split-phase
Rated Frequency50/60Hz
WaveformPure sine wave
Switch Time10ms (typical)
BATTERY
Battery TypeLithium-ion battery/lead-acid battery/user-defined battery
Rated Battery Voltage48V
Battery Volatge Range40～60Vdc
Max. Grid/Generator Charging Current60A60A80A80A
Max. Hybrid Charging Current100A120A140A140A
SOLAR INPUT
No. Of MPPT2
Max. PV Array Power3,000W+3,000W3,800W+3,800W4,500W+4,500W5,000W+5,000W
Max. Input Current18A+18A
Max. Open Circuit Voltage550Vdc+550Vdc
MPPT Voltage Range150~450Vdc
GRID/GENERATOR INPUT
Input Voltage Range65~140Vac
Input Frequency Range50/60Hz
Bypass Overload Current40A
EFFICIENCY
MPPT Tracking Efficiency99.9%
Max. Efficiency93%
GENERAL DATA
Parallel Capacit1～6 Units（More than 3 units in parallel can form a three-phase output）
Dimension584.6mm*410mm*133mmNoise<60dB
Weight18.9kgCooling MethodIntelligent fan
Protection DegreeIP20 Indoor OnlyWarranty2 years

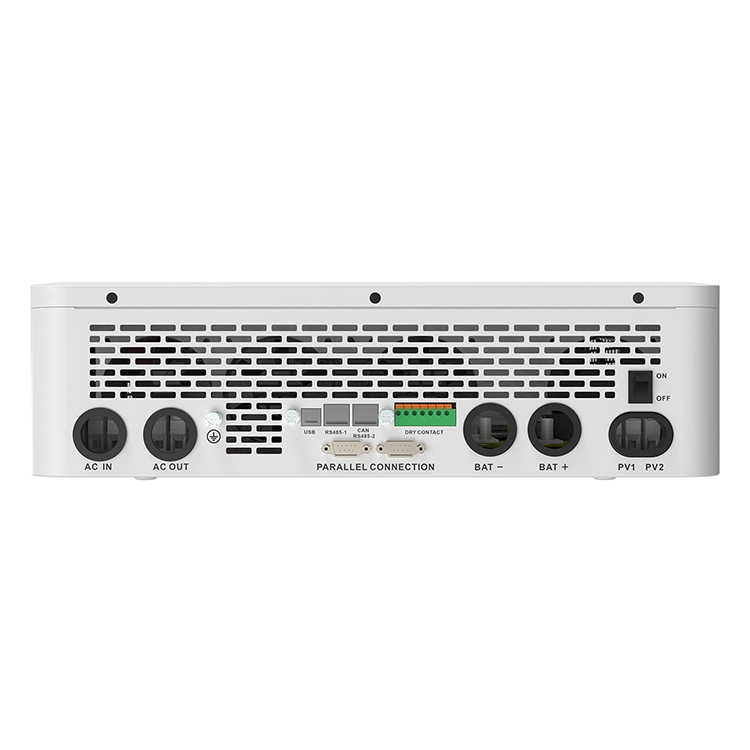

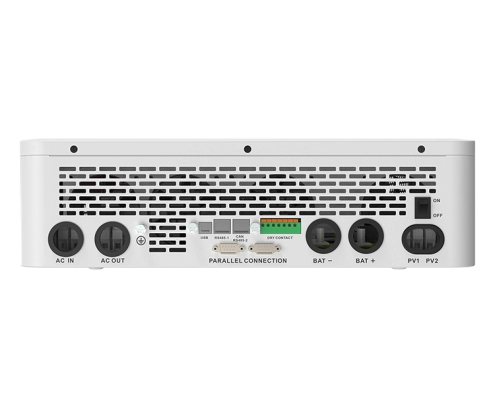

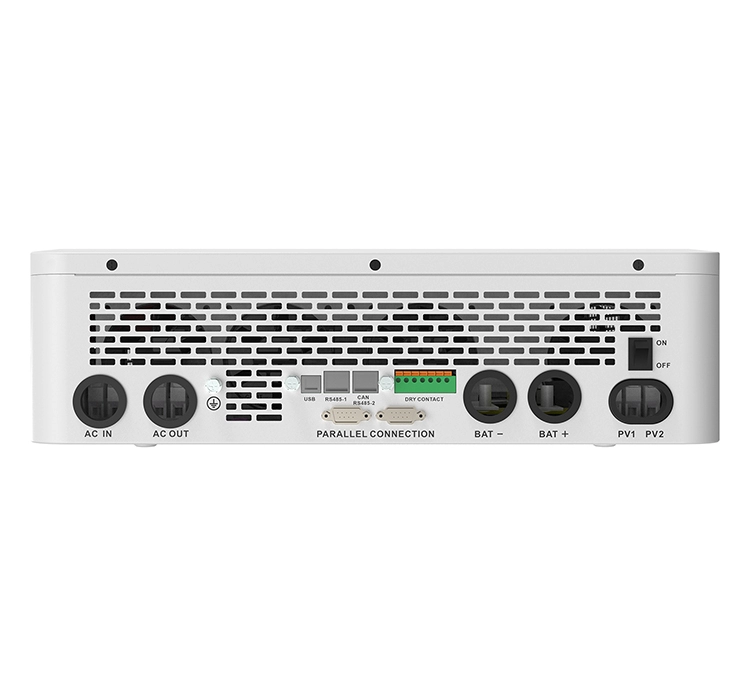

Temperature-10-55°C, >45°C DerateCommunicationRS485/CAN/USB/Dry Contact
External Module（Optional）Wi-Fi/GPRS
CertificateRoHs/EN61000-6-1/EC61000-6-3/FCC Part15 ClassB/IEC62109-1/IEC62109-2/UL1741
PROTECTION
Has PV input current limiting protection、PV input over-voltage、PV night reverse current protection、AC input overvoltage protection、AC input under-voltage protection、Battery over-voltage protection、Battery under-voltage
Protection、Battery over-current protection、AC output short-circuit protection、Heat sink over-temperature protection、
Inverter over-load protection.

Why Choose Our Solar Inverter?

140A Ultra-Fast Charging
Highest-in-class hybrid charging current.

Rapid Battery Recovery
Slashes recharge time after outages/usage.

Dual-Source Power Boost
Grid + solar combine for max charging speed.

Maximizes Solar Utilization
Quickly fills batteries to capture more solar energy.

Request a Consulation

Buyer-focused FAQ

Q: Will it keep my home powered during long outages?
A: Yes! 6,500W output + 13,000VA surge handles heavy loads, and 1–6 unit parallel support scales for whole-home backup.

Q: How fast can it recharge my batteries after a blackout?
A: Industry-leading 140A hybrid charging — refills batteries 70% faster than standard inverters using grid + solar combined.

Q: Will my solar panels waste energy when batteries are full?
A: No! Dual 5,000W MPPTs capture more sun, and 140A charging converts excess solar to battery power instantly.

Q: Is it compatible with my existing battery/solar setup?
A: Yes. Works with any battery (Li-ion/lead-acid/custom), high-voltage PV strings (550V), and unstable grids (65–140V).
